Overview

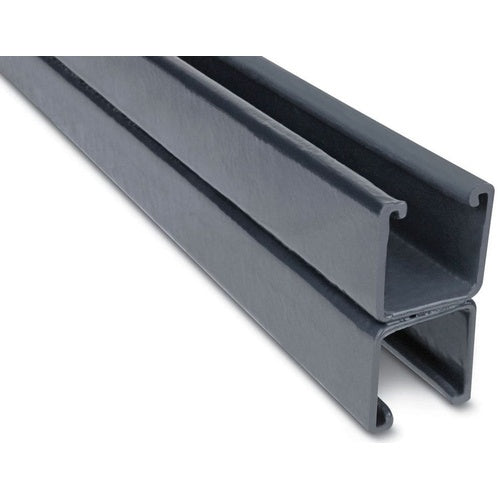

Ocal A12A-G PVC Coated Channel Strut 10Ft Gray

Product Specifications

• UPC: 70450843842
• Height: 3-1/4 Inch
• Material: Strip Steel
• Process: Cold Formed Hot Rolled Pickled
• Finish: PVC Coated
• Additional Information: Color Gray
• Catalog Number: A12A-G
• Type: Back to Back Combination
• Number Of Channels: 2
• Configuration: Solid
• Applicable Standard: UL, CSA
• Thickness: 12 Gauge
• Length: 10 Ft
• Width: 1-5/8 Inch
• Catalog Description: PVC COATED BACK TO BACK CHANNEL STRUT, 1-5/8 INCH DEPTH, 12 GAUGE, 10 FOOT LONG, STEEL, GRAY
• Category: Channel & Strut
• Full Technical Description: Back to Back Combination Type; Strip Steel Material; PVC Coated Finish; 10 ft; 1-5/8 Inch; 3-1/4 Inch; Solid Configuration; UL, CSA Applicable Standard; 12 Gauge Thickness; Cold Formed Hot Rolled Pickled Process; 2 Channel(S); Color Gray
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Channel/Strut
• Unspsc: 30101804
• UPC 12 Digit: 704508438425
• SKU Name: ocal a12ag

Resources

• Manufacturer Spec Sheet
