Overview

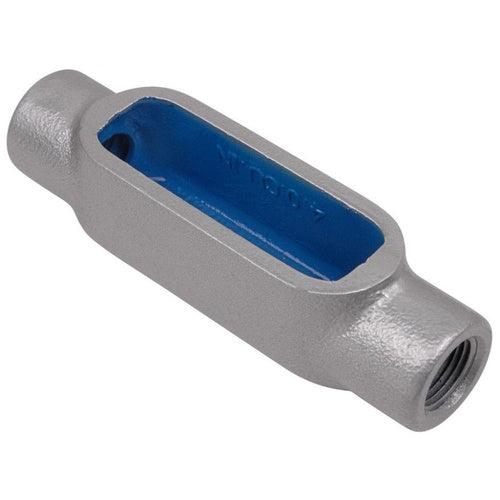

Ocal C77-G Conduit Body C-Shape Form-7, 2-1/2" Gray

Product Specifications

• UPC: 70450835893
• Size: 4.25 Inch W x 3.65 Inch H
• Installation: Threaded
• Material: Hot Dip Galvanized, Blue Urethane 2 Mil Coated, PVC Coated Zinc Steel Alloy Body Interior, Hot Dip Galvanized, Blue Urethane 2 Mil Coated, PVC 40 Mil Coated Zinc Steel Alloy Body Exterior, PVC Gasket, Stainless Steel Screw
• Form Type: Form 7
• Approval: UL E2969, CSA
• Used On: Rigid Conduit
• Additional Information: Color Dark Gray; Includes Cover, Gasket, Screw
• Catalog Number: C77-G
• Brand Name: BlueKote[R]
• Access Opening: Straight Side
• Configuration: C
• Cover Type: Hot Dip Galvanized, Blue Urethane 2 Mil Coated, PVC Coated Zinc Steel Alloy Interior, Hot Dip Galvanized, Blue Urethane 2 Mil Coated, PVC 40 Mil Coated Zinc Steel Alloy Exterior, Screw-On
• Hub Location: Straight
• Number Of Hubs: 2
• Hub Size: 2-1/2 Inch
• Catalog Description: PVC COATED CONDUIT BODY, C SHAPE, FORM 7, SIZE 2-1/2 INCH/63 METRIC, IRON, DARK GRAY
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Hot Dip Galvanized, Blue Urethane 2 mil Coated, PVC Coated Zinc Steel Alloy Body Interior, Hot Dip Galvanized, Blue Urethane 2 mil Coated, PVC 40 mil Coated Zinc Steel Alloy Body Exterior, PVC Gasket, Stainless Steel Screw Material; 4.25 Inch W X 3.65 Inch H Size; Rigid Conduit Used on; 2-1/2 Inch Hub Size; Threaded Installation; C Configuration; 2 Hub(S); UL E2969, CSA Approval; Hot Dip Galvanized, Blue Urethane 2 mil Coated, PVC Coated Zinc Steel Alloy Interior, Hot Dip Galvanized, Blue Urethane 2 mil Coated, PVC 40 mil Coated Zinc Steel Alloy Exterior, Screw-on Cover Type; Straight Hub Location; Form 7 Form Type; Straight Side Access Opening; OCAL-BLUE[R] Brand; Color Dark Gray; Includes Cover, Gasket, Screw
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 704508358938
• SKU Name: ocal c77g

Resources

• Manufacturer Spec Sheet
