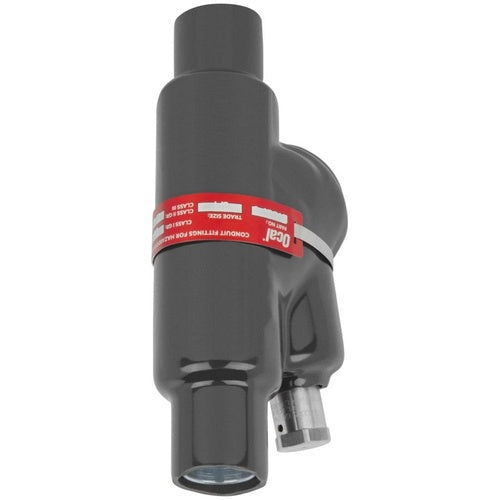

Ocal EYD10-G Conduit Sealing Fitting w/Drain 4" Gray

Overview

Ocal EYD10-G Conduit Sealing Fitting w/Drain 4" Gray

Product Specifications

• UPC: 70450837224
• Catalog Number: EYD10-G
• Model: EYD
• Turning Radius: 3-1/2 Inch
• Trade Size: 4 Inch
• Connection Type: Female, Female
• Material: Ductile Iron
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class III, Div 1 and 2
• Additional Information: Color Gray; Finish 40 Mil PVC Coated (Outside) Over 2 Mil Blue Urethane Double Coat
• Catalog Description: PVC DOUBLE COATED CONDUIT SEALING FITTING WITH DRAIN, EYD SERIES, FEMALE HUB, PIPE SIZE 4 INCH/103 METRIC, TURNING RADIUS 3.64 INCH/92.46 MILLIMETERS, IRON, DARK GRAY
• Category: Steel Sealing Bodies
• Full Technical Description: Ductile Iron Material; Female, Female Connection Type; Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class III, Div 1 and 2 Enclosure; 4 Inch Trade Size; 3-1/2 Inch Turning Radius; Color Gray; Finish 40 mil PVC Coated (Outside) Over 2 mil Blue Urethane Double Coat; EYD Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39131708
• UPC 12 Digit: 704508372248
• SKU Name: ocal eyd10g

Resources

• Manufacturer Spec Sheet
