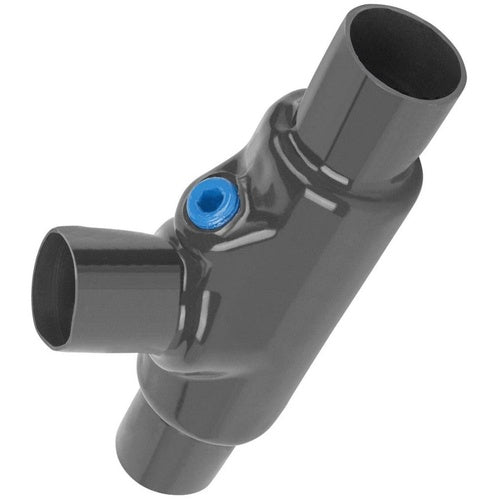

Ocal EYS21-G Conduit Sealing Fitting Female Hub 3/4" Gray

Overview

Ocal EYS21-G Conduit Sealing Fitting Female Hub 3/4" Gray

Product Specifications

• UPC: 70450837364
• Mounting Position: Horizontal/Vertical
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class III, Div 1 and 2
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Color Gray; Finish 40 Mil PVC Coated (Outside) Over 2 Mil Blue Urethane Double Coat
• Catalog Number: EYS21-G
• Brand Name: Ocal
• Model: EYS
• Type: Hub
• Turning Radius: 1.25 Inch
• Trade Size: 3/4 Inch
• Connection Type: Female, Female
• Material: Ductile Iron
• Catalog Description: PVC DOUBLE-COATED CONDUIT SEALING FITTING, EYS SERIES FOR HAZARDOUS LOCATIONS, FOR SEALING IN VERTICAL OR HORIZONTAL POSITIONS, FEMALE HUB, HUB SIZE 3/4 INCH/21 METRIC, TURNING RADIUS 1.25 INCH/31.75 MILLIMETERS, DUCTILE IRON, GRAY
• Category: Steel Sealing Bodies
• Full Technical Description: Hub Type; Ductile Iron Material; Female, Female Connection Type; UL, CSA Approval; Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class III, Div 1 and 2 Enclosure; 3/4 Inch Trade Size; Horizontal/Vertical Mounting Position; 1.25 Inch Turning Radius; RoHS Compliant; Color Gray; Finish 40 mil PVC Coated (Outside) Over 2 mil Blue Urethane Double Coat; EYS Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39131708
• UPC 12 Digit: 704508373641
• SKU Name: ocal eys21g

Resources

• Manufacturer Spec Sheet
