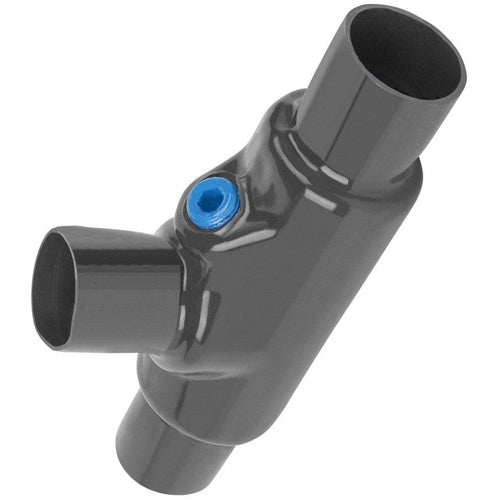

Ocal EYS81-G Conduit Sealing Fitting Male/Female Hub 3" Gray

Product Specifications

• UPC: 70450800912
• Mounting Position: HORIZONTAL/VERTICAL
• Enclosure: CLASS I DIV 1 AND 2 GROUP A B C D, CLASS II DIV 1 GROUP E F G, CLASS III
• Approval: UL, CSA
• Additional Information: COLOR GRAY
• Catalog Number: EYS81-G
• Brand Name: T&B[R]
• Model: EYS
• Type: HUB
• Turning Radius: 3 5/32 INCH
• Trade Size: 3 INCH
• Connection Type: FEMALE, FEMALE
• Material: ZINC PLATED ALUMINUM ACRYLIC PAINTED DUCTILE IRON
• Catalog Description: PVC DOUBLE-COATED CONDUIT SEALING FITTING, EYS SERIES FOR HAZARDOUS LOCATIONS, FOR SEALING IN VERTICAL OR HORIZONTAL POSITION, MALE AND FEMALE HUB, HUB SIZE 3 INCH/78 METRIC, DUCTILE IRON, GRAY
• Category: Steel Sealing Bodies
• Full Technical Description: Hub Type; Zinc Plated Aluminum Acrylic Painted Ductile Iron Material; Female, Female Connection Type; UL, CSA Approval; Class I Div 1 and 2 Group A B C D, Class II Div 1 Group E F G, Class III Enclosure; 3 Inch Trade Size; Horizontal/Vertical Mounting Position; 3 5/32 Inch Turning Radius; T&B[R] Brand; Color Gray; EYS Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39131708
• UPC 12 Digit: 704508009120
• SKU Name: ocal eys81g

Resources

• Manufacturer Spec Sheet
