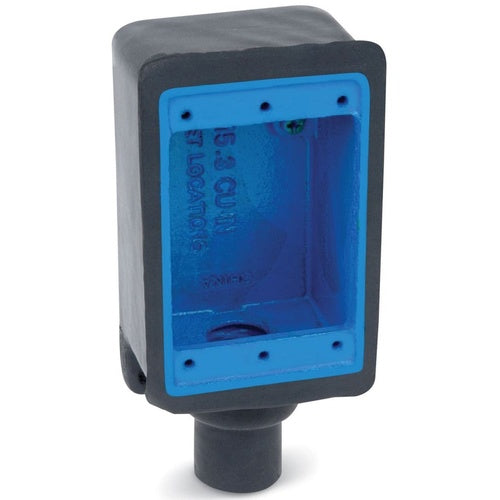

Ocal FD2-G Deadend Box Deep 1-Gang 3/4" Gray

Overview

Ocal FD2-G Deadend Box Deep 1-Gang 3/4" Gray

Product Specifications

• UPC: 70450837678
• Material: Iron Alloy (Box), Blue Urethane 2 Mil Coated (Interior, Exterior), Nominal 40 Mil PVC Coating Bonded(Exterior)
• Shape: Deep
• Configuration Type: FD
• Approval: UL, CSA
• Additional Information: Color Gray
• Catalog Number: FD2-G
• Brand Name: Ocal
• Model: FD
• Type: Dead End
• Number Of Gangs: 1
• Number Of Hubs: 1
• Hub Location: End
• Hub Size: 3/4 Inch
• Catalog Description: PVC DOUBLE-COATED DEAD END DEVICE BOX, FD SERIES, SINGLE GANG, DEEP STYLE, PIPE SIZE 3/4 INCH/21 METRIC, IRON ALLOY, DARK GRAY
• Category: Steel Fs & Fd Type Boxes & Covers
• Full Technical Description: Dead End Type; Iron Alloy (Box), Blue Urethane 2 mil Coated (Interior, Exterior), Nominal 40 mil PVC Coating Bonded(Exterior) Material; Deep Shape; 3/4 Inch Hub Size; 1 Hub(S); 1 Gang(S); UL, CSA Approval; End Hub Location; FD Configuration Type; OCAL-BLUE[R] Brand; Color Gray; FD Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Cast Device Box
• Unspsc: 39121315
• UPC 12 Digit: 704508376789
• SKU Name: ocal fd2g

Resources

• Manufacturer Spec Sheet
