Overview

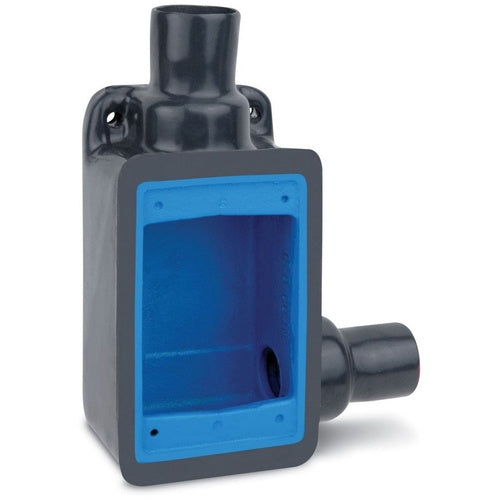

Ocal FDR2-G Hub Right Box Deep 1-Gang 3/4" Gray

Product Specifications

• UPC: 70450837811
• Material: HOT DIP GALVANIZED, BLUE URETHANE 2 MIL COATED STEEL BODY INTERIOR; HOT DIP GALVANIZED, BLUE URETHANE 2 MIL COATED, PVC 40 MIL COATED STEEL BODY EXTERIOR
• Shape: DEEP
• Configuration Type: FDR
• Approval: UL, CSA C22.2, FS WW-C-581
• Hub Size In Inch Uom: in
• Additional Information: COLOR GRAY
• Catalog Number: FDR2-G
• Brand Name: Ocal[R]
• Model: FD
• Number Of Gangs: 1
• Number Of Hubs: 2
• Hub Location: (1) BOTTOM, (1) ONE END
• Hub Size: 3/4 INCH
• Hub Size In Inch: .75
• Catalog Description: PVC DOUBLE-COATED HUB RIGHT DEVICE BOX, FD SERIES, SINGLE GANG, DEEP STYLE, PIPE SIZE 3/4 INCH/21 METRIC, IRON ALLOY, GRAY
• Category: Steel Fs & Fd Type Boxes & Covers
• Full Technical Description: Hot Dip Galvanized, Blue Urethane 2 mil Coated Steel Body Interior; Hot Dip Galvanized, Blue Urethane 2 mil Coated, PVC 40 mil Coated Steel Body Exterior Material; Deep Shape; 3/4 Inch Hub Size; 2 Hub(S); 1 Gang(S); UL, CSA C22.2, FS WW-C-581 Approval; .75 Hub Size in Inch; (1) Bottom, (1) One End Hub Location; Fdr Configuration Type; OCAL[R] Brand; Color Gray; Hub Size in Inch - Uom in; FD Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Cast Device Box
• Unspsc: 39121315
• UPC 12 Digit: 704508378110
• SKU Name: ocal fdr2g

Resources

• Manufacturer Spec Sheet
