Overview

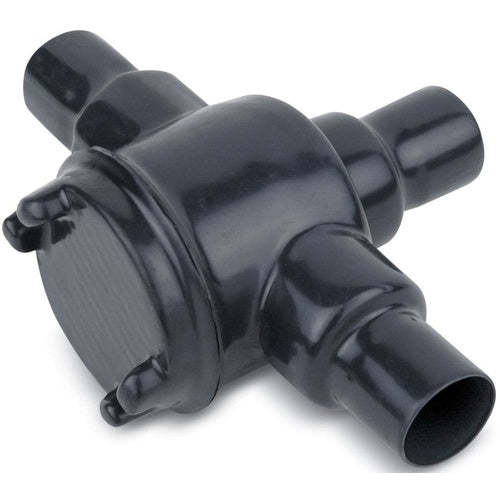

Ocal GUAD16-G Conduit Box T-Shape 1/2" Opening 3" Gray

Product Specifications

• UPC: 70450838474
• Cover Type: EXTERNALLY THREADED
• Cover Opening Diameter: 3 INCH
• Material: 40 MIL PVC COATED OVER 2 MIL DOUBLE COATED BLUE URETHANE
• Approval: UL, CSA
• Catalog Number: GUAD16-G
• Brand Name: Ocal[T]
• Model: GUA
• Hub Size: 1/2 INCH
• Hub Type: EXTERNAL
• Number Of Hubs: 3
• Hub Location: (2) SIDE, (1) DOWN
• Shape: ROUND
• Catalog Description: PVC DOUBLE-COATED CONDUIT OUTLET BOX FOR HAZARDOUS LOCATIONS, GUAD TYPE - T SHAPE, PIPE SIZE 1/2 INCH/16 METRIC, BOX IS DUCTILE IRON WITH ZINC PLATING, COVER IS DIE CAST ALUMINUM, COVER OPENING 3.00 INCH/76.20 MILLIMETERS, GRAY
• Category: Miscellaneous Conduit Bodies
• Full Technical Description: 40 mil PVC Coated Over 2 mil Double Coated Blue Urethane Material; Round Shape; 1/2 Inch Hub Size; 3 Hub(S); UL, CSA Approval; Externally Threaded Cover Type; (2) Side, (1) Down Hub Location; External Hub Type; 3 Inch Cover Opening Diameter; OCAL[T] Brand; GUA Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121331
• UPC 12 Digit: 704508384746
• SKU Name: ocal guad16g

Resources

• Manufacturer Spec Sheet
