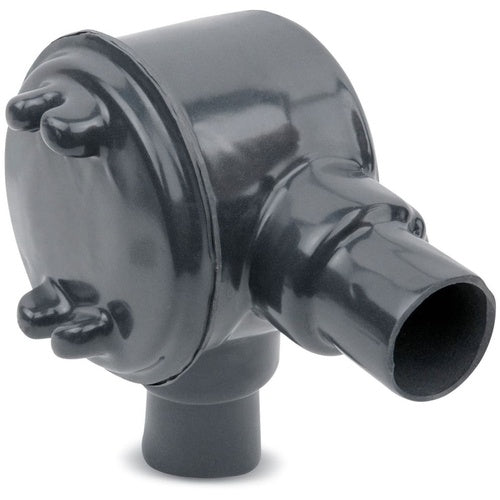

Ocal GUAL47-G Conduit Box L-Shape 1-1/4" Opening 3" Gray

Overview

Ocal GUAL47-G Conduit Box L-Shape 1-1/4" Opening 3" Gray

Product Specifications

• UPC: 70450838529
• Material: 40 MIL PVC COATED OVER 2 MIL DOUBLE COATED BLUE URETHANE
• Approval: UL, CSA
• Catalog Number: GUAL47-G
• Brand Name: Ocal[T]
• Model: GUA
• Hub Size: 1-1/4 INCH
• Hub Type: EXTERNAL
• Shape: ROUND
• Cover Type: EXTERNALLY THREADED
• Cover Opening Diameter: 3-5/8 INCH
• Catalog Description: PVC DOUBLE-COATED CONDUIT OUTLET BOX FOR HAZARDOUS LOCATIONS, GUAL TYPE - L SHAPE, PIPE SIZE 1-1/4 INCH/35 METRIC, BOX IS DUCTILE IRON WITH ZINC PLATING, COVER IS DIE CAST ALUMINUM, COVER OPENING 3.00 INCH/76.20 MILLIMETERS, GRAY
• Category: Miscellaneous Conduit Bodies
• Full Technical Description: 40 mil PVC Coated Over 2 mil Double Coated Blue Urethane Material; Round Shape; 1-1/4 Inch Hub Size; UL, CSA Approval; Externally Threaded Cover Type; External Hub Type; 3-5/8 Inch Cover Opening Diameter; OCAL[T] Brand; GUA Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121331
• UPC 12 Digit: 704508385293
• SKU Name: ocal gual47g

Resources

• Manufacturer Spec Sheet
