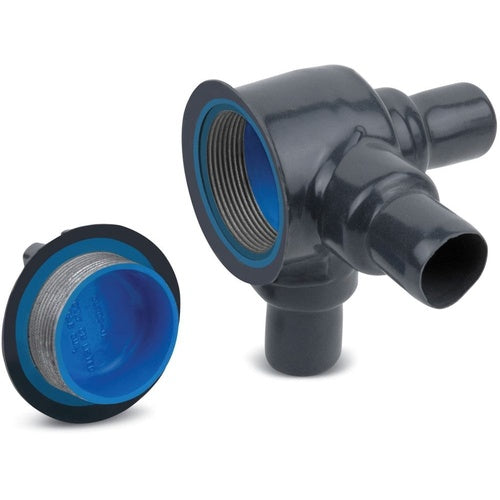

Ocal GUAM26-G Conduit Box M-Type 3/4" Opening 3" Gray

Overview

Ocal GUAM26-G Conduit Box M-Type 3/4" Opening 3" Gray

Product Specifications

• UPC: 70450838550
• Cover Opening Diameter: 3 INCH
• Material: HOT DIP GALVANIZED, BLUE URETHANE 2 MIL DOUBLE COATED STEEL BODY INTERIOR; HOT DIP GALVANIZED, BLUE URETHANE 2 MIL DOUBLE COATED, PVC 40 MIL COATED STEEL BODY EXTERIOR
• Additional Information: COLOR GRAY
• Catalog Number: GUAM26-G
• Brand Name: Ocal[R]
• Model: GUA
• Hub Size: 3/4 INCH
• Number Of Hubs: 3
• Hub Location: (2) SIDE, (1) BOTTOM
• Shape: ROUND
• Cover Type: EXTERNALLY THREADED
• Catalog Description: PVC DOUBLE-COATED CONDUIT OUTLET BOX FOR HAZARDOUS LOCATIONS, GUAM TYPE, PIPE SIZE 3/4 INCH/21 METRIC, BOX IS DUCTILE IRON WITH ZINC PLATING, COVER IS DIE CAST ALUMINUM, COVER OPENING 3.00 INCH/76.20 MILLIMETERS, GRAY
• Category: Miscellaneous Conduit Bodies
• Full Technical Description: Hot Dip Galvanized, Blue Urethane 2 mil Double Coated Steel Body Interior; Hot Dip Galvanized, Blue Urethane 2 mil Double Coated, PVC 40 mil Coated Steel Body Exterior Material; Round Shape; 3/4 Inch Hub Size; 3 Hub(S); Externally Threaded Cover Type; (2) Side, (1) Bottom Hub Location; 3 Inch Cover Opening Diameter; OCAL[R] Brand; Color Gray; GUA Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121331
• UPC 12 Digit: 704508385507
• SKU Name: ocal guam26g

Resources

• Manufacturer Spec Sheet
