Overview

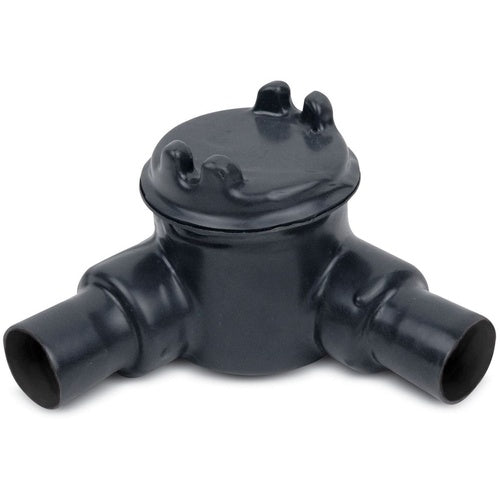

Ocal GUAN24-G Conduit Box N-Type 3/4" Opening 2" Gray

Product Specifications

• UPC: 70450838564
• Shape: ROUND
• Cover Type: EXTERNALLY THREADED
• Cover Opening Diameter: 2 INCH
• Material: 40 MIL PVC COATED OVER 2 MIL DOUBLE COATED BLUE URETHANE
• Approval: UL, CSA
• Catalog Number: GUAN24-G
• Brand Name: Ocal[T]
• Model: GUA
• Style: L
• Hub Size: 3/4 INCH
• Hub Type: EXTERNAL
• Number Of Hubs: 2
• Hub Location: (2) SIDE
• Catalog Description: PVC DOUBLE-COATED CONDUIT OUTLET BOX FOR HAZARDOUS LOCATIONS, GUAN TYPE - L SHAPE, PIPE SIZE 3/4 INCH/21 METRIC, BOX IS DUCTILE IRON WITH ZINC PLATING, COVER IS DIE CAST ALUMINUM, COVER OPENING 2.00 INCH/50.80 MILLIMETERS, GRAY
• Category: Miscellaneous Conduit Bodies
• Full Technical Description: 40 mil PVC Coated Over 2 mil Double Coated Blue Urethane Material; Round Shape; 3/4 Inch Hub Size; 2 Hub(S); UL, CSA Approval; Externally Threaded Cover Type; L Style; (2) Side Hub Location; External Hub Type; 2 Inch Cover Opening Diameter; OCAL[T] Brand; GUA Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121331
• UPC 12 Digit: 704508385644
• SKU Name: ocal guan24g

Resources

• Manufacturer Spec Sheet
