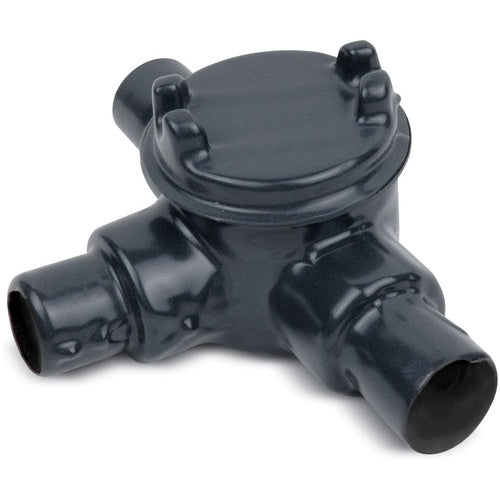

Ocal GUAT59-G Conduit Box T-Type 1-1/2" Opening 5" Gray

Product Specifications

• UPC: 70450838611
• Shape: Round
• Cover Type: Externally Threaded
• Cover Opening Diameter: 5 Inch
• Enclosure: Class I Div 1 and 2 Groups C D, Class II Div 1 Groups E F G, Class III Div 1 and 2, NEMA 3/4/7C/7D/9E/9F/9G,
• Material: Zinc Electro Plated PVC Coated Ductile Iron (Body), Die-Cast Aluminum (Cover)
• Approval: UL, CSA
• Additional Information: Color Dark Gray
• Catalog Number: GUAT59-G
• Model: GUAT
• Style: T
• Hub Size: 1-1/2 Inch
• Hub Type: External
• Number Of Hubs: 3
• Hub Location: (3) Side
• Capacity: 77.7 Cu Inch
• Catalog Description: PVC DOUBLE-COATED CONDUIT OUTLET BOX FOR HAZARDOUS LOCATIONS, GUAT TYPE - T SHAPE, PIPE SIZE 1-1/2 INCH/41 METRIC, BOX IS DUCTILE IRON WITH ZINC PLATING, COVER IS DIE CAST ALUMINUM, COVER OPENING 5.00 INCH/127.00 MILLIMETERS, GRAY
• Category: Miscellaneous Conduit Bodies
• Full Technical Description: Zinc Electro Plated PVC Coated Ductile Iron (Body), Die-Cast Aluminum (Cover) Material; Round Shape; 1-1/2 Inch Hub Size; 3 Hub(S); UL, CSA Approval; Class I Div 1 and 2 Groups C D, Class II Div 1 Groups E F G, Class III Div 1 and 2, NEMA 3/4/7C/7D/9E/9F/9G, Enclosure; Externally Threaded Cover Type; 77.7 Cu Inch Capacity; T Style; (3) Side Hub Location; External Hub Type; 5 Inch Cover Opening Diameter; OCAL-BLUE[R] Brand; Color Dark Gray; GUAT Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121331
• UPC 12 Digit: 704508386115
• SKU Name: ocal guat59g
