Overview

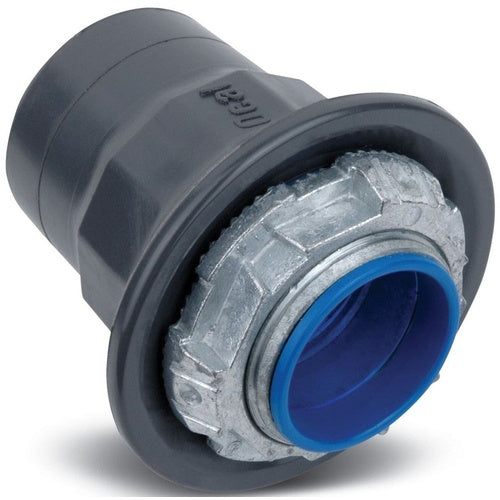

Ocal HUB-6-G PVC Coated Zinc Hub Connector 6" Dark-Gray

Product Specifications

• UPC: 70450838898
• Material: Dark Gray PVC Coated Zinc Hub, Nitrile Buna-N Sealing Ring
• Approval: UL 94, CSA
• Used On: Rigid Conduit
• Additional Information: Maximum Panel Thickness 0.31 Inch; Temperature Rating 105 Deg C
• Catalog Number: HUB6-G
• Model: HUB
• Type: Threaded
• Throat Type: Thermoplastic Insulated
• Trade Size: 6 Inch
• Size: 7.69 Inch Dia x 3.16 Inch L
• Constructional Feature: Corrosion Resistant
• Ground Type: Locknut Bonding Screw
• Catalog Description: PVC COATED ZINC HUB CONNECTOR WITH THERMOPLASTIC INSULATED THROAT, PIPE SIZE 6 INCH/155 METRIC, OVERALL DIAMETER 7.69 INCH/195.33 MILLIMETERS, MAXIMUM PANEL THICKNESS 0.31 INCH/7.87 MILLIMETERS, THROAT DIAMETER 6.00 INCH/152.40 MILLIMETERS, NITRILE RUBBER (BUNA-N) SEALING RING, DARK GRAY
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Threaded Type; Dark Gray PVC Coated Zinc Hub, Nitrile Buna-N Sealing Ring Material; 7.69 Inch Dia X 3.16 Inch L Size; Rigid Conduit Used on; UL 94, CSA Approval; Locknut Bonding Screw; 6 Inch Trade Size; Corrosion Resistant; Thermoplastic Insulated Throat Type; OCAL-BLUE[R] Brand; Maximum Panel Thickness 0.31 Inch; Temperature Rating 105 Deg C; HUB Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Rigid/EMT Conduit Hub
• Unspsc: 39121311
• UPC 12 Digit: 704508388980
• SKU Name: ocal hub6g
