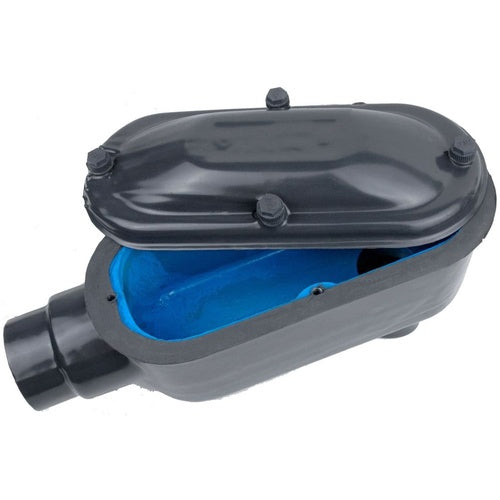

Ocal LB108-G Conduit Body LB-Shape Form-8, 4" Dark-Gray

Overview

Ocal LB108-G Conduit Body LB-Shape Form-8, 4" Dark-Gray

Product Specifications

• UPC: 70450839000
• Size: 16.88 Inch Length x 6.25 Inch Width x 7.81 Inch Height
• Installation: Threaded
• Material: Dark Gray 4 Mil PVC Coated Cast Iron Exterior
• Form Type: Form 8
• Approval: UL
• Additional Information: Includes Cover, Stainless Steel Screw
• Catalog Number: LB108-G
• Brand Name: Ocal-Blue[R]
• Access Opening: Back
• Configuration: LB
• Cover Type: Dark Gray 4 Mil PVC Coated Cast Iron Exterior
• Hub Location: 90 Degree
• Number Of Hubs: 2
• Hub Size: 4 Inch
• Catalog Description: PVC COATED CONDUIT BODY, LB SHAPE, FORM 8, SIZE 4 INCH/103 METRIC, IRON, DARK GRAY
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Dark Gray 4 mil PVC Coated Cast Iron Exterior Material; 16.88 Inch Length X 6.25 Inch Width X 7.81 Inch Height Size; 4 Inch Hub Size; Threaded Installation; lb Configuration; 2 Hub(S); UL Approval; Dark Gray 4 mil PVC Coated Cast Iron Exterior Cover Type; 90 Degree Hub Location; Form 8 Form Type; Back Access Opening; OCAL-BLUE[R] Brand; Includes Cover, Stainless Steel Screw
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 704508390006
• SKU Name: ocal lb108g
