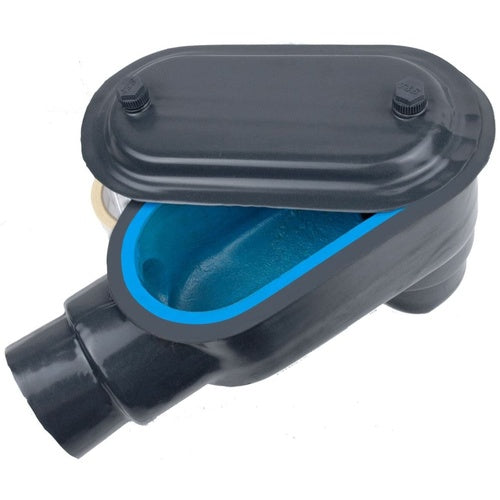

Ocal LB17-G Conduit Body LB-Shape Form-7, 1/2" Gray

Overview

Ocal LB17-G Conduit Body LB-Shape Form-7, 1/2" Gray

Product Specifications

• UPC: 70450839005
• Hub Size: 1/2 Inch
• Size: 4.6 Inch Length x 1.35 Inch Width x 2.2 Inch Height
• Installation: Screw, Threaded
• Material: 2 Mil Blue Urethane Coated Interior/Exterior, 40 Mil PVC Coated Exterior Gray Iron Alloy, PVC Gasket, Stainless Steel Screw
• Form Type: Form 7
• Approval: UL E2969, CSA
• Used On: Rigid Conduit
• Additional Information: Color Dark Gray; Includes Cover, Screw
• Catalog Number: LB17-G
• Brand Name: Ocal
• Model: LB
• Access Opening: Back
• Configuration: LB
• Cover Type: 2 Mil Blue Urethane Coated Interior/Exterior, 40 Mil PVC Coated Exterior Iron Alloy
• Hub Location: 90 Degree
• Number Of Hubs: 2
• Catalog Description: PVC COATED CONDUIT BODY, LB SHAPE, FORM 7, SIZE 1/2 INCH/16 METRIC, IRON, DARK GRAY
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: 2 mil Blue Urethane Coated Interior/Exterior, 40 mil PVC Coated Exterior Gray Iron Alloy, PVC Gasket, Stainless Steel Screw Material; 4.6 Inch Length X 1.35 Inch Width X 2.2 Inch Height Size; Rigid Conduit Used on; 1/2 Inch Hub Size; Screw, Threaded Installation; lb Configuration; 2 Hub(S); UL E2969, CSA Approval; 2 mil Blue Urethane Coated Interior/Exterior, 40 mil PVC Coated Exterior Iron Alloy Cover Type; 90 Degree Hub Location; Form 7 Form Type; Back Access Opening; OCAL-BLUE[R] Brand; Color Dark Gray; Includes Cover, Screw; LB Model
• Made In Usa: Yes
• Manufacturer: THOMAS & BETTS OCAL
• Manufacturer Brand: T&B Ocal
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 704508390051
• SKU Name: ocal lb17g

Resources

• Manufacturer Spec Sheet
