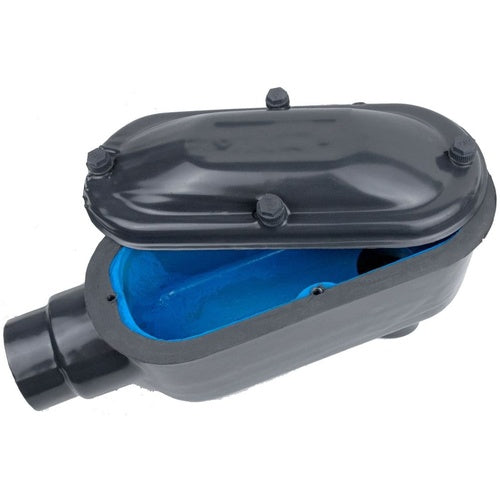

Ocal LB28-4X-G Conduit Body LB Form-8, UL-4X 3/4" Gray

Overview

Ocal LB28-4X-G Conduit Body LB Form-8, UL-4X 3/4" Gray

Product Specifications

• UPC: 70450802439
• Hub Size: 3/4 Inch
• Size: 5.56 Inch Length x 1.56 Inch Width x 2.44 Inch Height
• Installation: Screw, Threaded
• Material: Gray PVC Coated Cast Iron, 2 Mil Blue Urethane Coated Interior, 40 Mil PVC Coated Exterior, Stainless Steel Screw
• Form Type: Form 8
• Approval: UL, CSA
• Used On: Conduit
• Additional Information: Enclosure Rating NEMA 4X; Includes O-Ring Seal, Cover and Screw
• Catalog Number: LB28-4X-G
• Brand Name: Ocal
• Model: LB
• Access Opening: Back
• Configuration: LB
• Cover Type: PVC Coated Cast Iron, 2 Mil Blue Urethane Coated Interior, 40 Mil PVC Coated Exterior
• Hub Location: 90 Degree Back
• Number Of Hubs: 2
• Catalog Description: PVC COATED CONDUIT BODY, LB SHAPE, FORM 8 UL-4X, SIZE 3/4 INCH/21 METRIC, IRON, DARK GRAY
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Gray PVC Coated Cast Iron, 2 mil Blue Urethane Coated Interior, 40 mil PVC Coated Exterior, Stainless Steel Screw Material; 5.56 Inch Length X 1.56 Inch Width X 2.44 Inch Height Size; Conduit Used on; 3/4 Inch Hub Size; Screw, Threaded Installation; lb Configuration; 2 Hub(S); UL, CSA Approval; PVC Coated Cast Iron, 2 mil Blue Urethane Coated Interior, 40 mil PVC Coated Exterior Cover Type; 90 Degree Back Hub Location; Form 8 Form Type; Back Access Opening; OCAL-BLUE[R] Brand; Enclosure Rating NEMA 4X; Includes O-ring Seal, Cover and Screw; LB Model
• Made In Usa: Yes
• Manufacturer: THOMAS & BETTS OCAL
• Manufacturer Brand: T&B Ocal
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 704508024390
• SKU Name: ocal lb284xg
