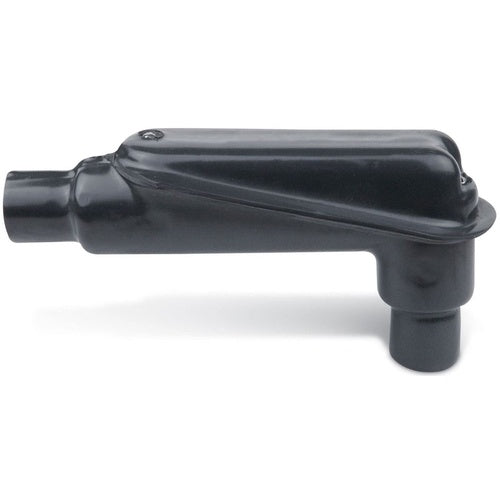

Ocal LBD2200-G PVC Coated Pull Elbow 90-Deg 3/4" Gray

Overview

Ocal LBD2200-G PVC Coated Pull Elbow 90-Deg 3/4" Gray

Product Specifications

• UPC: 70450839132
• Installation: Screw
• Material: Blue Urethane 2 Mil Coated, PVC 40 Mil Coated Exterior, Gray Iron
• Approval: UL, CSA
• Used On: Rigid Conduit
• Additional Information: Color Gray
• Catalog Number: LBD2200-G
• Model: LBD
• Access Opening: Back
• Configuration: LB
• Cover Type: Blue Urethane 2 Mil Coated, PVC 40 Mil Coated Exterior, Gray Iron
• Hub Location: 90 Deg
• Number Of Hubs: 2
• Hub Size: 3/4 Inch
• Catalog Description: PVC COATED PULLING ELBOW, 90 DEGREE BEND, WITH PRESSURE-SEALING SLEEVES SEAL CONNECTIONS, PIPE SIZE 3/4 INCH/21 METRIC, GRAY IRON, DARK GRAY
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Blue Urethane 2 mil Coated, PVC 40 mil Coated Exterior, Gray Iron Material; Rigid Conduit Used on; 3/4 Inch Hub Size; Screw Installation; lb Configuration; 2 Hub(S); UL, CSA Approval; Blue Urethane 2 mil Coated, PVC 40 mil Coated Exterior, Gray Iron Cover Type; 90 Deg Hub Location; Back Access Opening; OCAL-BLUE[R] Brand; Color Gray; LBD Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Conduit Body
• Unspsc: 39131717
• UPC 12 Digit: 704508391324
• SKU Name: ocal lbd2200g

Resources

• Manufacturer Spec Sheet
