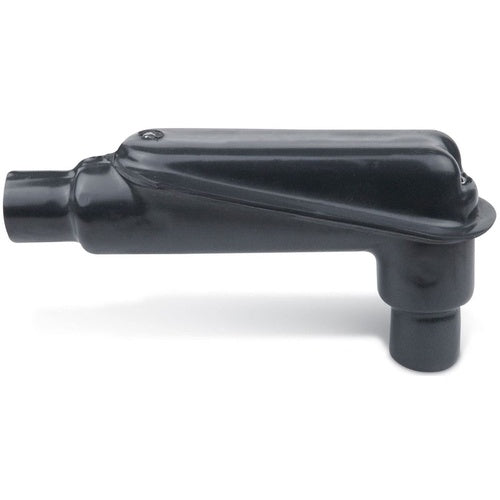

Ocal LBD6600-G PVC Coated Pull Elbow 90-Deg 2" Gray

Overview

Ocal LBD6600-G PVC Coated Pull Elbow 90-Deg 2" Gray

Product Specifications

• UPC: 70450839149
• Installation: THREADED
• Material: HOT DIP GALVANIZED, BLUE URETHANE 2 MIL COATED, PVC COATED ZINC STEEL ALLOY BODY INTERIOR; HOT DIP GALVANIZED, BLUE URETHANE 2 MIL COATED, PVC 40 MIL COATED ZINC STEEL ALLOY BODY EXTERIOR; PVC GASKET; STAINLESS STEEL SCREW
• Approval: UL, CSA
• Used On: RIGID CONDUIT
• Catalog Number: LBD6600-G
• Brand Name: Ocal[T]
• Access Opening: BACK
• Configuration: LB
• Cover Type: HOT DIP GALVANIZED, BLUE URETHANE 2 MIL COATED, PVC COATED ZINC STEEL ALLOY INTERIOR; HOT DIP GALVANIZED, BLUE URETHANE 2 MIL COATED, PVC 40 MIL COATED ZINC STEEL ALLOY EXTERIOR; SCREW ON
• Hub Location: 90 DEG
• Number Of Hubs: 2
• Hub Size: 2 INCH
• Catalog Description: PVC COATED PULLING ELBOW, 90 DEGREE BEND, WITH PRESSURE-SEALING SLEEVES SEAL CONNECTIONS, PIPE SIZE 2 INCH/53 METRIC, GRAY IRON, DARK GRAY
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Hot Dip Galvanized, Blue Urethane 2 mil Coated, PVC Coated Zinc Steel Alloy Body Interior; Hot Dip Galvanized, Blue Urethane 2 mil Coated, PVC 40 mil Coated Zinc Steel Alloy Body Exterior; PVC Gasket; Stainless Steel Screw Material; Rigid Conduit Used on; 2 Inch Hub Size; Threaded Installation; lb Configuration; 2 Hub(S); UL, CSA Approval; Hot Dip Galvanized, Blue Urethane 2 mil Coated, PVC Coated Zinc Steel Alloy Interior; Hot Dip Galvanized, Blue Urethane 2 mil Coated, PVC 40 mil Coated Zinc Steel Alloy Exterior; Screw on Cover Type; 90 Deg Hub Location; Back Access Opening; OCAL[T] Brand
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Conduit Body
• Unspsc: 39131717
• UPC 12 Digit: 704508391492
• SKU Name: ocal lbd6600g

Resources

• Manufacturer Spec Sheet
