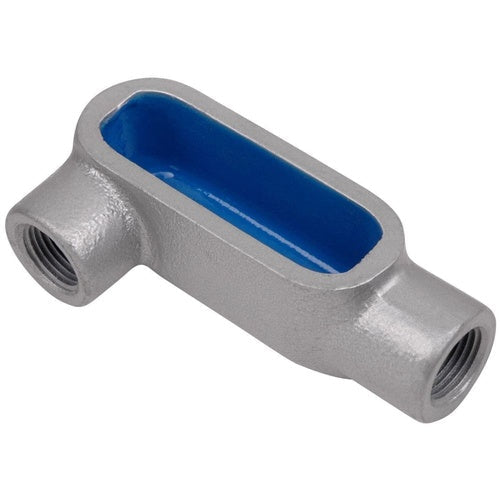

Ocal LR777-G Conduit Body LR-Shape Form-7, 2-1/2" Gray

Overview

Ocal LR777-G Conduit Body LR-Shape Form-7, 2-1/2" Gray

Product Specifications

• UPC: 70450839435
• Installation: THREADED
• Material: HOT DIP GALVANIZED, BLUE URETHANE 2 MIL COATED, PVC COATED ZINC STEEL ALLOY BODY INTERIOR; HOT DIP GALVANIZED, BLUE URETHANE 2 MIL COATED, PVC 40 MIL COATED ZINC STEEL ALLOY BODY EXTERIOR; PVC GASKET; STAINLESS STEEL SCREW
• Form Type: FORM 7
• Approval: UL, CSA
• Used On: RIGID CONDUIT
• Catalog Number: LR777-G
• Brand Name: Ocal[T]
• Access Opening: RIGHT SIDE
• Configuration: LR
• Cover Type: HOT DIP GALVANIZED, BLUE URETHANE 2 MIL COATED, PVC COATED ZINC STEEL ALLOY INTERIOR; HOT DIP GALVANIZED, BLUE URETHANE 2 MIL COATED, PVC 40 MIL COATED ZINC STEEL ALLOY EXTERIOR; SCREW ON
• Hub Location: 90 DEG
• Number Of Hubs: 2
• Hub Size: 2-1/2 INCH
• Catalog Description: PVC COATED CONDUIT BODY, LR SHAPE, FORM 7, SIZE 2-1/2 INCH/63 METRIC, IRON, DARK GRAY
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Hot Dip Galvanized, Blue Urethane 2 mil Coated, PVC Coated Zinc Steel Alloy Body Interior; Hot Dip Galvanized, Blue Urethane 2 mil Coated, PVC 40 mil Coated Zinc Steel Alloy Body Exterior; PVC Gasket; Stainless Steel Screw Material; Rigid Conduit Used on; 2-1/2 Inch Hub Size; Threaded Installation; LR Configuration; 2 Hub(S); UL, CSA Approval; Hot Dip Galvanized, Blue Urethane 2 mil Coated, PVC Coated Zinc Steel Alloy Interior; Hot Dip Galvanized, Blue Urethane 2 mil Coated, PVC 40 mil Coated Zinc Steel Alloy Exterior; Screw on Cover Type; 90 Deg Hub Location; Form 7 Form Type; Right Side Access Opening; OCAL[T] Brand
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 704508394356
• SKU Name: ocal lr777g

Resources

• Manufacturer Spec Sheet
