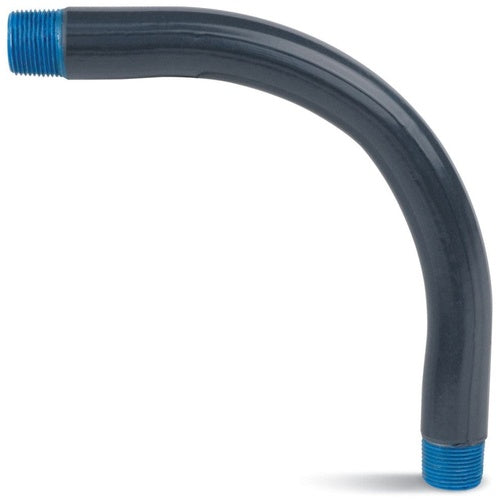

Ocal LRELL1X15-G PVC Coated Elbow 90-Deg 1" R15" Steel Gray

Overview

Ocal LRELL1X15-G PVC Coated Elbow 90-Deg 1" R15" Steel Gray

Product Specifications

• UPC: 70450839504
• Finish: 40 Mil PVC Coated Hot-Dip Galvanized
• Standard Package: 1
• Applicable Standard: ANSI C80.1
• Approval: UL, CSA
• Additional Information: Color Dark Gray
• Catalog Number: LRELL1X15-G
• Brand Name: OCAL-BLUE[R]
• Type: Large Radius
• Trade Size: 1 Inch
• Bend Angle: 90 Deg
• Bend Radius: 15 Inch
• End Type: External Threaded
• Material: Steel
• Catalog Description: LARGE RADIUS ELBOW, 40 MIL PVC COATED, PIPE SIZE 1 INCH/27 METRIC, ANGLE 90 DEGREES, RADIUS 15 INCH/381.00 MILLIMETERS, OFFSET 2 FEET/609.60 MILLIMETERS, STRAIGHT END 9 INCH/228.60 MILLIMETERS, UNBENT LENGTH 42 INCH/1,066.80 MILLIMETERS, HOT-DIP GALVANIZED RIGID STEEL, GRAY
• Category: Elbows-Couplings-Nipples - Steel
• Full Technical Description: Large Radius Type; Steel Material; 40 mil PVC Coated Hot-Dip Galvanized Finish; UL, CSA Approval; ANSI C80.1 Applicable Standard; 1 Standard Package; 1 Inch Trade Size; External Threaded End Type; 90 Deg Bend Angle; 15 Inch Bend Radius; OCAL-BLUE[R] Brand; Color Dark Gray
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Rigid Conduit Bend
• Unspsc: 39131717
• UPC 12 Digit: 704508395049
• SKU Name: ocal lrell1x15g

Resources

• Manufacturer Spec Sheet
