Overview

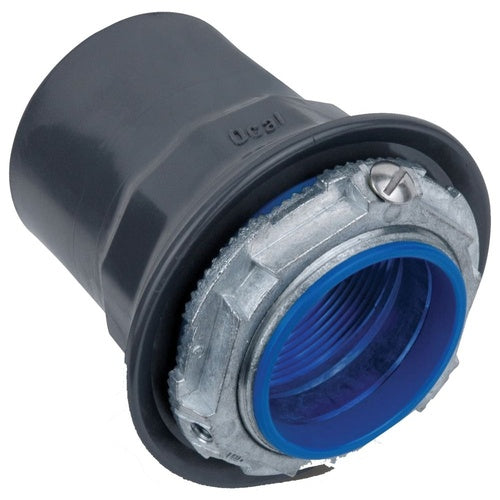

Ocal STG10-G PVC Coated Zinc Ground Hub 4" Dark-Gray

Product Specifications

• UPC: 70450840875
• Material: Dark Gray PVC Coated Zinc Hub, Nitrile Buna-N Sealing Ring
• Approval: UL 94
• Used On: Rigid Conduit
• Additional Information: Maximum Panel Thickness 1/4 Inch; Temperature Rating 105 Deg C
• Catalog Number: STG10-G
• Model: STG
• Type: Threaded
• Throat Type: Thermoplastic Insulated
• Trade Size: 4 Inch
• Size: 5.5 Inch Dia x 2.72 Inch L
• Constructional Feature: Corrosion Resistant
• Ground Type: Locknut Bonding/Grounding Screw
• Catalog Description: PVC COATED ZINC GROUNDED HUB WITH THERMOPLASTIC INSULATED THROAT, PIPE SIZE 4 INCH/103 METRIC, OVERALL DIAMETER 5.50 INCH/139.70 MILLIMETERS, MAXIMUM PANEL THICKNESS 0.25 INCH/6.35 MILLIMETERS, THROAT DIAMETER 3.88 INCH/98.55 MILLIMETERS, NITRILE RUBBER (BUNA-N) SEALING RING, DARK GRAY
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Threaded Type; Dark Gray PVC Coated Zinc Hub, Nitrile Buna-N Sealing Ring Material; 5.5 Inch Dia X 2.72 Inch L Size; Rigid Conduit Used on; UL 94 Approval; Locknut Bonding/Grounding Screw; 4 Inch Trade Size; Corrosion Resistant; Thermoplastic Insulated Throat Type; OCAL-BLUE[R] Brand; Maximum Panel Thickness 1/4 Inch; Temperature Rating 105 Deg C; STG Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Rigid/EMT Conduit Hub
• Unspsc: 39121311
• UPC 12 Digit: 704508408756
• SKU Name: ocal stg10g

Resources

• Manufacturer Spec Sheet
