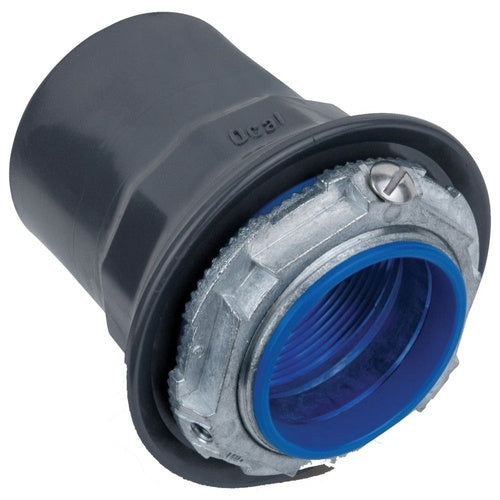

Ocal STG1-G PVC Coated Zinc Ground Hub 1/2" Dark-Gray

Product Specifications

• UPC: 70450840873
• Material: Dark Gray PVC Coated Zinc Hub, Nitrile Buna-N Sealing Ring
• Approval: UL 94
• Used On: Rigid Conduit
• Additional Information: Maximum Panel Thickness 0.19 Inch; Temperature Rating 105 Deg C
• Catalog Number: STG1-G
• Model: STG
• Type: Threaded
• Throat Type: Thermoplastic Insulated
• Trade Size: 1/2 Inch
• Size: 1.44 Inch Dia x 1.56 Inch L
• Constructional Feature: Corrosion Resistant
• Ground Type: Locknut Bonding/Grounding Screw
• Catalog Description: PVC COATED ZINC GROUNDED HUB WITH THERMOPLASTIC INSULATED THROAT, PIPE SIZE 1/2 INCH/16 METRIC, OVERALL DIAMETER 1.44 INCH/36.58 MILLIMETERS, MAXIMUM PANEL THICKNESS 0.19 INCH/4.83 MILLIMETERS, THROAT DIAMETER 0.59 INCH/14.99 MILLIMETERS, NITRILE RUBBER (BUNA-N) SEALING RING, DARK GRAY
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Threaded Type; Dark Gray PVC Coated Zinc Hub, Nitrile Buna-N Sealing Ring Material; 1.44 Inch Dia X 1.56 Inch L Size; Rigid Conduit Used on; UL 94 Approval; Locknut Bonding/Grounding Screw; 1/2 Inch Trade Size; Corrosion Resistant; Thermoplastic Insulated Throat Type; OCAL-BLUE[R] Brand; Maximum Panel Thickness 0.19 Inch; Temperature Rating 105 Deg C; STG Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Rigid/EMT Conduit Hub
• Unspsc: 39121311
• UPC 12 Digit: 704508408732
• SKU Name: ocal stg1g

Resources

• Manufacturer Spec Sheet
