Overview

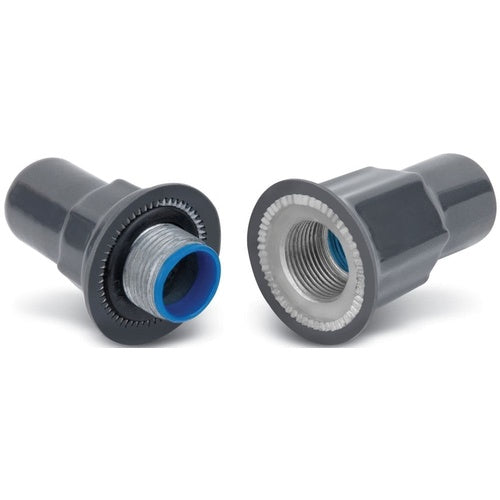

Ocal STTB2-G PVC Coated Bulkhead Fitting 3/4" Gray

Product Specifications

• UPC: 70450840921
• Material: Gray PVC Coated Zinc Hub, Nitrile Sealing Ring
• Approval: UL 94
• Used On: Rigid Conduit
• Additional Information: Thread Size 3/4 Inch-14 TPI
• Catalog Number: STTB2-G
• Model: STTB
• Type: Bulkhead, Threaded
• Throat Type: Thermoplastic Insulated
• Trade Size: 3/4 Inch
• Size: 1.69 Inch Dia
• Constructional Feature: Corrosion Resistant, Sealtight
• Ground Type: Locknut Bonding Screw
• Catalog Description: PVC COATED BULKHEAD FITTING WITH THERMOPLASTIC INSULATED THROAT, PIPE SIZE 3/4 INCH/21 METRIC, THREAD 3/4 - 14, HEIGHT 1.47 INCH, DIAMETER 1.69 INCH, ACROSS FLATS 1.25 INCH, NITRILE RUBBER (BUNA-N) SEALING RING, GRAY
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Bulkhead, Threaded Type; Gray PVC Coated Zinc Hub, Nitrile Sealing Ring Material; 1.69 Inch Dia Size; Rigid Conduit Used on; UL 94 Approval; Locknut Bonding Screw; 3/4 Inch Trade Size; Corrosion Resistant, Sealtight; Thermoplastic Insulated Throat Type; Thread Size 3/4 Inch-14 TPI; STTB Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Rigid/EMT Conduit Hub
• Unspsc: 39121311
• UPC 12 Digit: 704508409210
• SKU Name: ocal sttb2g

Resources

• Manufacturer Spec Sheet
