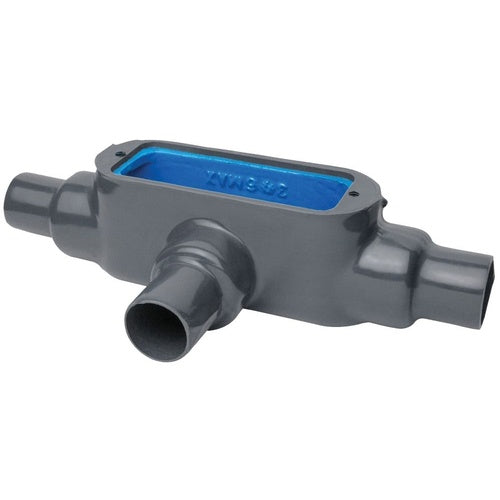

Ocal T38-4X-G Conduit Body T Form-8, UL-4X 1" Gray

Overview

Ocal T38-4X-G Conduit Body T Form-8, UL-4X 1" Gray

Product Specifications

• UPC: 70450802560
• Hub Size: 1 Inch
• Size: 7.31 Inch Length x 2.25 Inch Width x 2.63 Inch Height
• Installation: Screw, Threaded
• Material: Gray PVC Coated Cast Iron, 2 Mil Blue Urethane Coated Interior, 40 Mil PVC Coated Exterior, Stainless Steel Screw
• Form Type: Form 8
• Approval: UL, CSA
• Used On: Conduit
• Additional Information: Enclosure Rating NEMA 4X; Includes O-Ring Seal, Cover and Screw
• Catalog Number: T38-4X-G
• Brand Name: Ocal
• Model: T
• Access Opening: Tee Side
• Configuration: T
• Cover Type: PVC Coated Cast Iron, 2 Mil Blue Urethane Coated Interior, 40 Mil PVC Coated Exterior
• Hub Location: Tee
• Number Of Hubs: 3
• Catalog Description: PVC COATED CONDUIT BODY, T SHAPE, FORM 8 UL-4X, SIZE 1 INCH/27 METRIC, IRON, DARK GRAY
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Gray PVC Coated Cast Iron, 2 mil Blue Urethane Coated Interior, 40 mil PVC Coated Exterior, Stainless Steel Screw Material; 7.31 Inch Length X 2.25 Inch Width X 2.63 Inch Height Size; Conduit Used on; 1 Inch Hub Size; Screw, Threaded Installation; T Configuration; 3 Hub(S); UL, CSA Approval; PVC Coated Cast Iron, 2 mil Blue Urethane Coated Interior, 40 mil PVC Coated Exterior Cover Type; Tee Hub Location; Form 8 Form Type; Tee Side Access Opening; OCAL-BLUE[R] Brand; Enclosure Rating NEMA 4X; Includes O-ring Seal, Cover and Screw; T Model
• Made In Usa: Yes
• Manufacturer: THOMAS & BETTS OCAL
• Manufacturer Brand: T&B Ocal
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 704508025601
• SKU Name: ocal t384xg

Resources

• Manufacturer Spec Sheet
