Overview

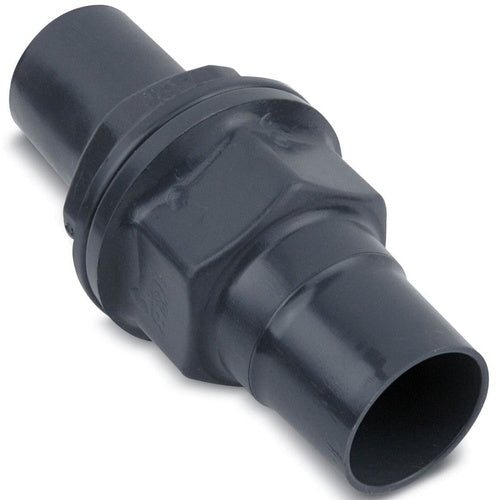

Ocal UNF205-G PVC Coated UNF Female Union 3/4" Gray

Product Specifications

• UPC: 70450841291
• Approval: UL, CSA
• Additional Information: Color Dark Gray
• Catalog Number: UNF205-G
• Brand Name: Ocal
• Model: UNF
• Type: Female/Female
• Material: PVC Coated Steel Electrogalvanized Steel
• Trade Size: 3/4 Inch
• Diameter: 1-13/16 Inch
• Length: 2-1/8 Inch
• Catalog Description: PVC COATED EXPLOSION AND DUST-IGNITION PROOF UNF FEMALE UNION, PIPE SIZE 3/4 INCH/21 METRIC, 3 PIECE, FOR HAZARDOUS AND NON-HAZARDOUS LOCATIONS, OVERALL LENGTH 2.13 INCH/54.10 MILLIMETERS, OVERALL DIAMETER 1.81 INCH/45.97 MILLIMETERS, ELECTROGALVANIZED STEEL, GRAY
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Female/Female Type; PVC Coated Steel Electrogalvanized Steel Material; 2-1/8 Inch; UL, CSA Approval; 1-13/16 Inch Diameter; 3/4 Inch Trade Size; OCAL-BLUE[R] Brand; Color Dark Gray; UNF Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Explosionproof Standard Conduit Union
• Unspsc: 39131707
• UPC 12 Digit: 704508412913
• SKU Name: ocal unf205g

Resources

• Manufacturer Spec Sheet
