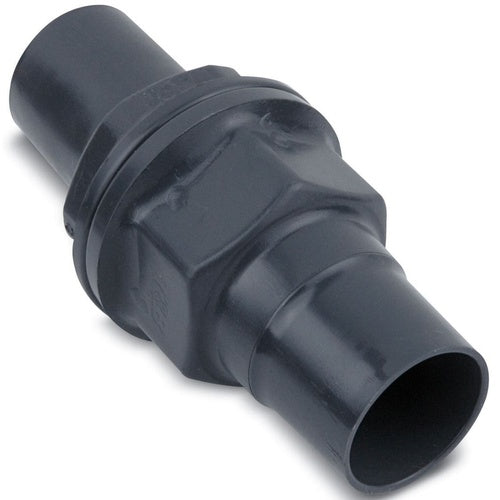

Ocal UNF705-G PVC Coated UNF Female Union 2-1/2" Gray

Overview

Ocal UNF705-G PVC Coated UNF Female Union 2-1/2" Gray

Product Specifications

• UPC: 70450841333
• Approval: UL, CSA
• Additional Information: Color Dark Gray
• Catalog Number: UNF705-G
• Brand Name: Ocal
• Model: UNF
• Type: Female/Female
• Material: PVC Coated Steel Electrogalvanized Steel
• Trade Size: 2-1/2 Inch
• Diameter: 4-5/16 Inch
• Length: 3-1/2 Inch
• Catalog Description: PVC COATED EXPLOSION AND DUST-IGNITION PROOF UNF FEMALE UNION, PIPE SIZE 2-1/2 INCH/63 METRIC, 3 PIECE, FOR HAZARDOUS AND NON-HAZARDOUS LOCATIONS, OVERALL LENGTH 3.50 INCH/88.90 MILLIMETERS, OVERALL DIAMETER 4.31 INCH/109.47 MILLIMETERS, ELECTROGALVANIZED STEEL, GRAY
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Female/Female Type; PVC Coated Steel Electrogalvanized Steel Material; 3-1/2 Inch; UL, CSA Approval; 4-5/16 Inch Diameter; 2-1/2 Inch Trade Size; OCAL-BLUE[R] Brand; Color Dark Gray; UNF Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Explosionproof Standard Conduit Union
• Unspsc: 39131707
• UPC 12 Digit: 704508413330
• SKU Name: ocal unf705g

Resources

• Manufacturer Spec Sheet
