Overview

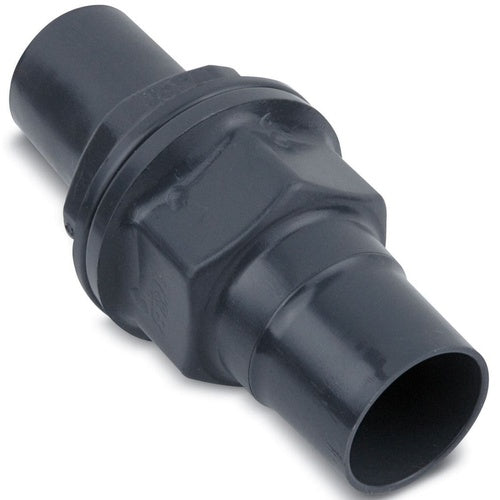

Ocal UNF905-G PVC Coated UNF Female Union 3-1/2" Gray

Product Specifications

• UPC: 70450841346
• Additional Information: Color Dark Gray
• Catalog Number: UNF905-G
• Model: UNF
• Type: Female/Female
• Material: PVC Coated Steel Electro Galvanized Steel
• Trade Size: 3-1/2 Inch
• Diameter: 5.69 Inch
• Length: 4.16 Inch
• Approval: UL, CSA
• Catalog Description: PVC COATED EXPLOSION AND DUST-IGNITION PROOF UNF FEMALE UNION, PIPE SIZE 3-1/2 INCH/91 METRIC, 3 PIECE, FOR HAZARDOUS AND NON-HAZARDOUS LOCATIONS, OVERALL LENGTH 4.16 INCH/105.66 MILLIMETERS, OVERALL DIAMETER 5.69 INCH/144.53 MILLIMETERS, ELECTROGALVANIZED STEEL, GRAY
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Female/Female Type; PVC Coated Steel Electro Galvanized Steel Material; 4.16 Inch; UL, CSA Approval; 5.69 Inch Diameter; 3-1/2 Inch Trade Size; OCAL-BLUE[R] Brand; Color Dark Gray; UNF Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Explosionproof Standard Conduit Union
• Unspsc: 39131707
• UPC 12 Digit: 704508413460
• SKU Name: ocal unf905g

Resources

• Manufacturer Spec Sheet
