Overview

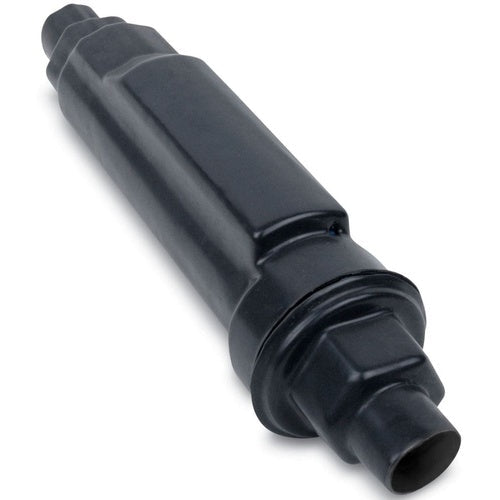

Ocal XJG58-G Expansion Coupling 1-1/2", Length 14.56" Gray

Product Specifications

• UPC: 70450841770
• Approval: UL, CSA
• Catalog Number: XJG58-G
• Brand Name: Ocal[T]
• Model: XJG
• Material: 40 MIL PVC COATED (OUTSIDE) OVER 2 MIL BLUE URETHANE DOUBLE COATED STEEL
• Trade Size: 1-1/2 INCH
• Ground Type: INTERNALLY GROUNDED
• Maximum Movement: 8 INCH
• Constructional Feature: CORROSION RESISTANT
• Catalog Description: PVC COATED XJG RIGID CONDUIT EXPANSION COUPLING WITH INTERNAL BONDING JUMPER, 1-1/2 INCH/41 METRIC, BODY IS MALLEABLE IRON WITH ZINC PLATING, INTERNAL BONDING JUMPER IS TINNED COPPER BRAID, PACKING PTFE/SYNTHETIC FIBER MATERIAL, 8 INCH/203.20 MILLIMETERS MOVEMENT, DIAMETER 3.36 INCH/85.34 MILLIMETERS, LENGTH 14.56 INCH/369.82 MILLIMETERS, HEIGHT 3.68 INCH/93.47 MILLIMETERS, GRAY
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Approval UL, CSA; Constructional Feature Corrosion Resistant; Ground Type Internally Grounded; Material 40 mil PVC Coated (Outside) Over 2 mil Blue Urethane Double Coated Steel; Maximum Movement 8 Inch; Trade Size 1-1/2 Inch; OCAL[T] Brand; XJG Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Rigid/Emt Conduit Expansion/Deflection Joint
• Unspsc: 39131707
• UPC 12 Digit: 704508417703
• SKU Name: ocal xjg58g

Resources

• Manufacturer Spec Sheet
