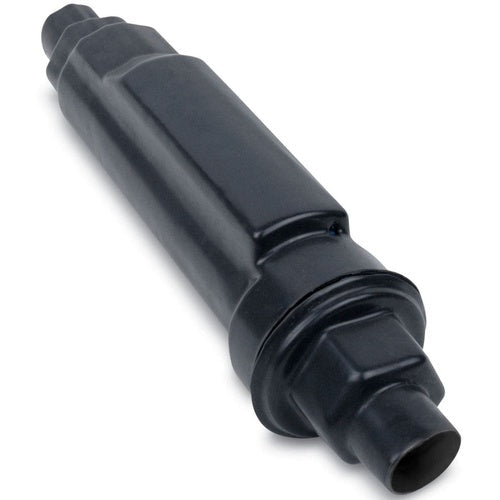

Ocal XJG68-G Expansion Coupling 2", Length 15.25" Gray

Product Specifications

• UPC: 70450841775
• Approval: UL, CSA
• Catalog Number: XJG68-G
• Brand Name: Ocal[T]
• Model: XJG
• Material: 40 MIL PVC COATED (OUTSIDE) OVER 2 MIL BLUE URETHANE DOUBLE COATED STEEL
• Trade Size: 2 INCH
• Ground Type: INTERNALLY GROUNDED
• Maximum Movement: 8 INCH
• Constructional Feature: CORROSION RESISTANT
• Catalog Description: PVC COATED XJG RIGID CONDUIT EXPANSION COUPLING WITH INTERNAL BONDING JUMPER, 2 INCH/53 METRIC, BODY IS MALLEABLE IRON WITH ZINC PLATING, INTERNAL BONDING JUMPER IS TINNED COPPER BRAID, PACKING PTFE/SYNTHETIC FIBER MATERIAL, 8 INCH/203.20 MILLIMETERS MOVEMENT, DIAMETER 3.86 INCH/98.04 MILLIMETERS, LENGTH 15.25 INCH/387.35 MILLIMETERS, HEIGHT 4.18 INCH/106.17 MILLIMETERS, GRAY
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Approval UL, CSA; Constructional Feature Corrosion Resistant; Ground Type Internally Grounded; Material 40 mil PVC Coated (Outside) Over 2 mil Blue Urethane Double Coated Steel; Maximum Movement 8 Inch; Trade Size 2 Inch; OCAL[T] Brand; XJG Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Rigid/Emt Conduit Expansion/Deflection Joint
• Unspsc: 39131707
• UPC 12 Digit: 704508417758
• SKU Name: ocal xjg68g

Resources

• Manufacturer Spec Sheet
