Product information
Overview

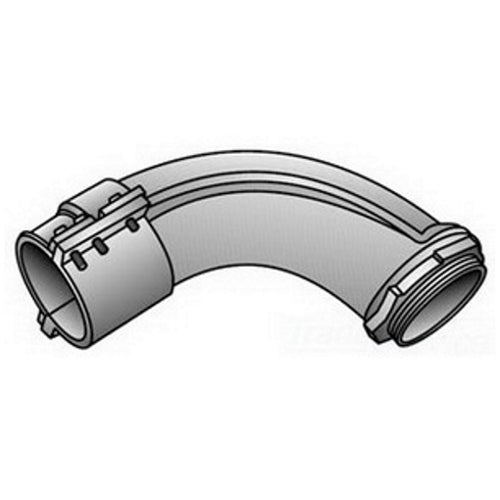

OZ-Gedney AC-250 2-1/2" 90D Squeeze Flex Connector
Product Specifications
- UPC: 78312601565
- Throat Type: Non-Insulated
- Material: Electro Zinc Plated Malleable Iron
- Approval: UL 514B, CSA C22.2
- Additional Information: Includes Locknut; Used On Armored Cable/Flexible Metal Conduit; Applicable Standard NEMA FB-1
- Catalog Number: AC-250
- Model: AC
- Type: 90 Deg
- Trade Size: 2-1/2 Inch
- Cable Opening: Single
- Cable/Conduit Type: Armored Cable/Flexible Metal Conduit
- Cord Size: 3-1/2 to 3-3/16 Inch
- Installation: Squeeze
- Catalog Description: OZ-GEDNEY TYPE AC 90 DEG CENTER STOPPED SQUEEZE CONNECTOR, SIZE: 2-1/2 IN, CONNECTION: MALE NPS HUB X SCREW CLAMP, CONDUCTOR RANGE: 2-3/4 - 3 IN, MALLEABLE IRON, FINISH: ZINC ELECTROPLATED, INSULATED THROAT, 7/8 IN THREAD LENGTH, DIMENSION A: 6-1/4
- Category: Liquid Tight Flex. Conduit Fittings
- Full Technical Description: 90 Deg Type; Electro Zinc Plated Malleable Iron Material; Squeeze Installation; UL 514B, CSA C22.2 Approval; 2-1/2 Inch Trade Size; 3-1/2 to 3-3/16 Inch Cord Size; Non-Insulated Throat Type; Armored Cable/Flexible Metal Conduit; Single Cable Opening; Includes Locknut; Used on Armored Cable/Flexible Metal Conduit; Applicable Standard NEMA FB-1; AC Model
- Manufacturer: O-Z Gedney
- Manufacturer Brand: O-Z Gedney
- Sub Category: Armored Cable/Flex Conduit Connector
- Unspsc: 39121419
- UPC 12 Digit: 783126015652
- SKU Name: ozg ac250
