Product information
Overview

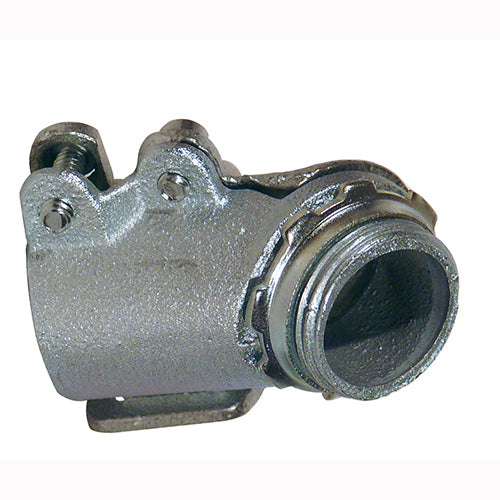

OZ-Gedney AC-50 1/2" 45D Squeeze Flex Connector
Product Specifications
- UPC: 78312601505
- Installation: Squeeze
- Throat Type: Non-Insulated
- Material: Electro Zinc Plated Malleable Iron
- Approval: UL 514B, CSA C22.2
- Additional Information: Includes Locknut; Used On Armored Cable/Flexible Metal Conduit; Applicable Standard NEMA FB-1
- Catalog Number: AC-50
- Model: AC
- Type: 45 Deg
- Trade Size: 1/2 Inch
- Cable Opening: Single
- Cable/Conduit Type: Armored Cable/Flexible Metal Conduit
- Cord Size: 25/32 to 15/16 Inch
- Length: 2-3/8 Inch
- Catalog Description: OZ-GEDNEY TYPE AC 45 DEG CENTER STOPPED SQUEEZE CONNECTOR, SIZE: 1/2 IN, CONNECTION: MALE NPS HUB X SCREW CLAMP, CONDUCTOR RANGE: 25/32 - 15/16 IN, MALLEABLE IRON, FINISH: ZINC ELECTROPLATED, DIMENSIONS: 1-15/16 IN LENGTH X 1-11/16 IN WIDTH, THIRD P
- Category: Liquid Tight Flex. Conduit Fittings
- Full Technical Description: 45 Deg Type; Electro Zinc Plated Malleable Iron Material; 2-3/8 Inch; Squeeze Installation; UL 514B, CSA C22.2 Approval; 1/2 Inch Trade Size; 25/32 to 15/16 Inch Cord Size; Non-Insulated Throat Type; Armored Cable/Flexible Metal Conduit; Single Cable Opening; Includes Locknut; Used on Armored Cable/Flexible Metal Conduit; Applicable Standard NEMA FB-1; AC Model
- Manufacturer: O-Z Gedney
- Manufacturer Brand: O-Z Gedney
- Sub Category: Armored Cable/Flex Conduit Connector
- Unspsc: 39121419
- UPC 12 Digit: 783126015058
- SKU Name: ozg ac50
