Overview

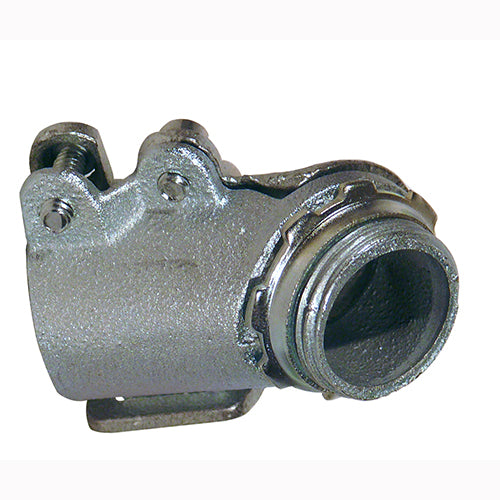

OZ-Gedney AC-75 3/4" 45D Squeeze Flex Connector

Product Specifications

• UPC: 78312601515
• Installation: Squeeze
• Throat Type: Non-Insulated
• Material: Electro Zinc Plated Malleable Iron
• Approval: UL 514B, CSA C22.2
• Additional Information: Includes Locknut; Used On Armored Cable/Flexible Metal Conduit; Applicable Standard NEMA FB-1
• Catalog Number: AC-75
• Model: AC
• Type: 45 Deg
• Trade Size: 3/4 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored Cable/Flexible Metal Conduit
• Cord Size: 29/32 to 1-1/16 Inch
• Length: 2-5/8 Inch
• Catalog Description: OZ-GEDNEY TYPE AC 45 DEG CENTER STOPPED SQUEEZE CONNECTOR, SIZE: 3/4 IN, CONNECTION: MALE NPS HUB X SCREW CLAMP, CONDUCTOR RANGE: 29/32 - 1-1/16 IN, MALLEABLE IRON, FINISH: ZINC ELECTROPLATED, DIMENSIONS: 2-1/8 IN LENGTH X 1-3/4 IN WIDTH, THIRD PARTY CERTIFICATION: UL FILE NUMBER E-11852, HAZARDOUS LOCATION: NEC 501-4(B) CLASS I DIVISION II, NEC 350-5 (GROUNDING MEANS) CSA 9795 (ARMORED CABLE), APPLICABLE THIRD PARTY STANDARDS: UL 514B, CSA C22.2 NO.18, FEDERAL SPECIFICATION W-F-406E, NEMA : FB-1, FOR ARMORED CABLE, FLEXIBLE METAL CONDUIT, NON-METALLIC AND SERVICE ENTRANCE CABLE
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: 45 Deg Type; Electro Zinc Plated Malleable Iron Material; 2-5/8 Inch; Squeeze Installation; UL 514B, CSA C22.2 Approval; 3/4 Inch Trade Size; 29/32 to 1-1/16 Inch Cord Size; Non-Insulated Throat Type; Armored Cable/Flexible Metal Conduit; Single Cable Opening; Includes Locknut; Used on Armored Cable/Flexible Metal Conduit; Applicable Standard NEMA FB-1; AC Model
• Manufacturer: O-Z Gedney
• Manufacturer Brand: O-Z Gedney
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121419
• UPC 12 Digit: 783126015157
• SKU Name: ozg ac75
