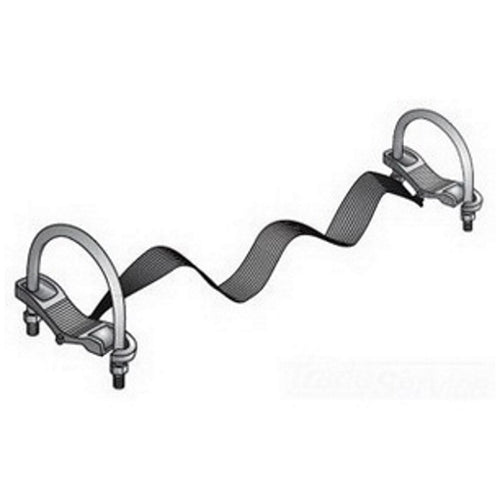

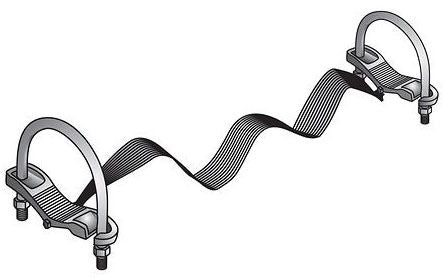

OZ-Gedney BJ-0507-24 Bonding Jumper

Overview

OZ-Gedney BJ-0507-24 Bonding Jumper

Product Specifications

• UPC: 78312604018
• Additional Information: Applicable Standard Federal Specification W-F-406E, NEMA FB-1
• Catalog Number: BJ-0507-24
• Model: BJ
• Trade Size: 1/2 to 3/4 Inch
• Strap Length: 24 Inch
• Material: Hot Dip Galvanized Malleable/Ductile Iron (Clamp), Hot Dip Galvanized Steel (U Bolt), Tinned Copper (Braid)
• Used On: AX8/TX/EX Series Expansion Fitting
• Application: Bonding Rigid/EMT/IMC Steel Conduit
• Approval: UL 467, CSA C22.2
• Catalog Description: OZ-GEDNEY TYPE BJ BONDING JUMPER, SIZE: 1/2 - 3/4 IN, CLAMPS: MALLEABLE OR DUCTILE IRON, U-BOLTS: STEEL, BRAIDS: TINNED COPPER, FINISH: CLAMP AND U-BOLT: HOT DIP GALVANIZED, 24 IN FULLY EXTENDED BRAID, THIRD PARTY CERTIFICATION: UL FILE NUMBER
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Hot Dip Galvanized Malleable/Ductile Iron (Clamp), Hot Dip Galvanized Steel (U Bolt), Tinned Copper (Braid) Material; AX8/Tx/Ex Series Expansion Fitting Used on; 24 Inch Strap Length; UL 467, CSA C22.2 Approval; Bonding Rigid/Emt/Imc Steel Conduit Application; 1/2 to 3/4 Inch Trade Size; Applicable Standard Federal Specification W-F-406E, NEMA FB-1; BJ Model
• Manufacturer: O-Z Gedney
• Manufacturer Brand: O-Z Gedney
• Sub Category: Grounding Flexible Braid Expansion Joint Jumper
• Unspsc: 39121613
• UPC 12 Digit: 783126040180
• SKU Name: ozg bj050724
