Overview

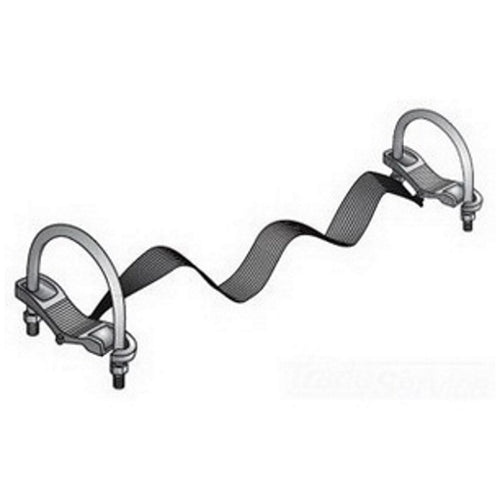

OZ-Gedney BJ-5060-14 Bounding Jumper

Product Specifications

• UPC: 78312604015
• Additional Information: Applicable Standard Federal Specification W-F-406E, NEMA FB-1
• Catalog Number: BJ-5060-14
• Model: BJ
• Trade Size: 5 to 6 Inch
• Strap Length: 14 Inch
• Material: Hot Dip Galvanized Malleable/Ductile Iron (Clamp), Hot Dip Galvanized Steel (U Bolt), Tinned Copper (Braid)
• Used On: AX Series Expansion Fitting
• Application: Bonding Rigid/EMT/IMC Steel Conduit
• Approval: UL 467, CSA C22.2
• Catalog Description: OZ-GEDNEY TYPE BJ BONDING JUMPER, SIZE: 5 - 6 IN, CLAMPS: MALLEABLE OR DUCTILE IRON, U-BOLTS: STEEL, BRAIDS: TINNED COPPER, FINISH: CLAMP AND U-BOLT: HOT DIP GALVANIZED, 14 IN FULLY EXTENDED BRAID, THIRD PARTY CERTIFICATION: UL FILE NUMBER E-24264, CSA 15978, APPLICABLE THIRD PARTY STANDARDS: UL 467, CSA C22.2 NO.41, FEDERAL SPECIFICATION W-F-406E, NEMA : FB-1, FOR BONDING TWO RIGID, EMT OR IMC STEEL CONDUITS
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Hot Dip Galvanized Malleable/Ductile Iron (Clamp), Hot Dip Galvanized Steel (U Bolt), Tinned Copper (Braid) Material; AX Series Expansion Fitting Used on; 14 Inch Strap Length; UL 467, CSA C22.2 Approval; Bonding Rigid/Emt/Imc Steel Conduit Application; 5 to 6 Inch Trade Size; Applicable Standard Federal Specification W-F-406E, NEMA FB-1; BJ Model
• Manufacturer: O-Z Gedney
• Manufacturer Brand: O-Z Gedney
• Sub Category: Grounding Flexible Braid Expansion Joint Jumper
• Unspsc: 39121613
• UPC 12 Digit: 783126040159
• SKU Name: ozg bj506014

Resources

• Manufacturer Spec Sheet
