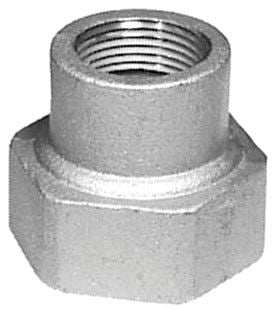

OZ-Gedney REC-1207 1-1/4-3/4 Reducer Coupling

Overview

OZ-Gedney REC-1207 1-1/4-3/4 Reducer Coupling

Product Specifications

• UPC: 78312647003
• Additional Information: Constructional Feature Explosionproof, Dust-Ignitionproof; Application Hazardous Location
• Catalog Number: REC-1207
• Model: REC
• Large End Trade Size: 1-1/4 Inch
• Small End Trade Size: 3/4 Inch
• Material: Zinc Electroplated Malleable Iron
• End Style: Threaded x Threaded
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL, CSA C22.2
• Catalog Description: RIGID CONDUIT REDUCER COUPLING, LARGE END TRADE SIZE 1-1/4 INCH, SMALL END TRADE SIZE 3/4 INCH, MATERIAL ZINC ELECTROPLATED MALLEABLE IRON, SIZE 2-3/16 INCH DIA X 1-7/8 INCH L, ENCLOSURE CLASS I DIV 1 2 GROUP A B C D, CLASS II DIV 1 2 GROUP E F G, CLASS III, APPROVAL CSA C22.2, APPLICABLE STANDARD NEC 500 TO 503/505, CONSTRUCTIONAL FEATURE DUST IGNITIONPROOF, EXPLOSIONPROOF, USED ON THREADED IMC/RIGID METAL CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Zinc Electroplated Malleable Iron Material; 3/4 Inch Small End Trade Size; 1-1/4 Inch Large End Trade Size; UL, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; Threaded X Threaded End Style; Constructional Feature Explosionproof, Dust-Ignitionproof; Application Hazardous Location; REC Model
• Manufacturer: O-Z Gedney
• Manufacturer Brand: O-Z Gedney
• Sub Category: Explosionproof Conduit Reducer Coupling
• Unspsc: 39131707
• UPC 12 Digit: 783126470031
• SKU Name: ozg rec1207

Resources

• Manufacturer Spec Sheet
