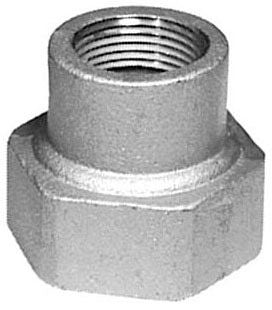

OZ-Gedney REC-1507 1-1/2-3/4 Reducer Coupling

Overview

OZ-Gedney REC-1507 1-1/2-3/4 Reducer Coupling

Product Specifications

• UPC: 78312647005
• Catalog Number: REC-1507
• Model: REC
• Large End Trade Size: 1-1/2 INCH
• Small End Trade Size: 3/4 INCH
• Size: 2-1/2 INCH DIA X 1-7/8 INCH L
• Material: ZINC PLATED MALLEABLE IRON
• Approval: CSA C22.2
• Installation: THREADED
• Catalog Description: RIGID CONDUIT REDUCER COUPLING, LARGE END TRADE SIZE 1-1/2 INCH, SMALL END TRADE SIZE 3/4 INCH, MATERIAL ZINC ELECTROPLATED MALLEABLE IRON, SIZE 2-1/2 INCH DIA X 1-7/8 INCH L, ENCLOSURE CLASS I DIV 1 2 GROUP A B C D, CLASS II DIV 1 2 GROUP E F G, CLASS III, APPROVAL CSA C22.2, APPLICABLE STANDARD NEC 500 TO 503/505, CONSTRUCTIONAL FEATURE DUST IGNITIONPROOF, EXPLOSIONPROOF, USED ON THREADED IMC/RIGID METAL CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Zinc Plated Malleable Iron Material; 2-1/2 Inch Dia X 1-7/8 Inch L Size; 3/4 Inch Small End Trade Size; 1-1/2 Inch Large End Trade Size; CSA C22.2 Approval; Installation Threaded; REC Model
• Manufacturer: O-Z Gedney
• Manufacturer Brand: O-Z Gedney
• Sub Category: Rigid/Emt Conduit Reducer
• Unspsc: 39131707
• UPC 12 Digit: 783126470055
• SKU Name: ozg rec1507

Resources

• Manufacturer Spec Sheet
