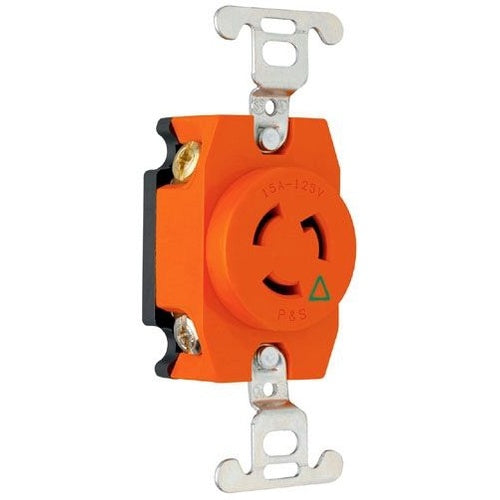

P&S IG4710 Turnlok Single Receptacle 3-Way 15A 125V Ig

Overview

P&S IG4710 Turnlok Single Receptacle 3-Way 15A 125V Ig

Product Specifications

• UPC: 78500764710
• Number Of Wires: 3
• Ground Type: Isolated Grounding
• Face Outer Diameter: 1.375 Inch
• Material: Nylon
• Color: Orange
• Wiring: Back
• Mounting: Strap
• Approval: UL 498, CSA C22.2
• Additional Information: Overall Dimension 1.5 Inch W x 1.199 Inch D x 3.281 Inch H; Applicable Standard NEMA WD-1/WD-6; Operating Temperature -40 to 185 Deg F
• Catalog Number: IG4710
• Brand Name: TURNLOK[R]
• Type: Single Locking
• Constructional Feature: Impact Resistant
• Configuration: L5-15R
• Voltage Rating: 125 VAC
• Current Rating: 15 Ampere
• Number Of Poles: 2
• Catalog Description: TURNLOK REGISTERED SINGLE RECEPTACLE 3-WIRE 15A 125V ISOLATED GROUND
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single Locking Type; Nylon Material; Orange Color; L5-15R Configuration; 3 Wire(S); UL 498, CSA C22.2 Approval; 125 VAC Voltage Rating; Strap Mounting; 15 Ampere Current Rating; Isolated Grounding; 2 Pole(S); Impact Resistant; Back Wiring; 1.375 Inch Face Outer Diameter; TURNLOK[R] Brand; Overall Dimension 1.5 Inch W X 1.199 Inch D X 3.281 Inch H; Applicable Standard NEMA Wd-1/Wd-6; Operating Temperature -40 to 185 Deg F
• Manufacturer: PASS & SEYMOUR INC WIRING DEVICES & ACCESSORIES
• Manufacturer Brand: Pass & Seymour Inc. Wiring Devices & Accessories
• Sub Category: Locking Device Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 785007647105
• SKU Name: p&s ig4710

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
