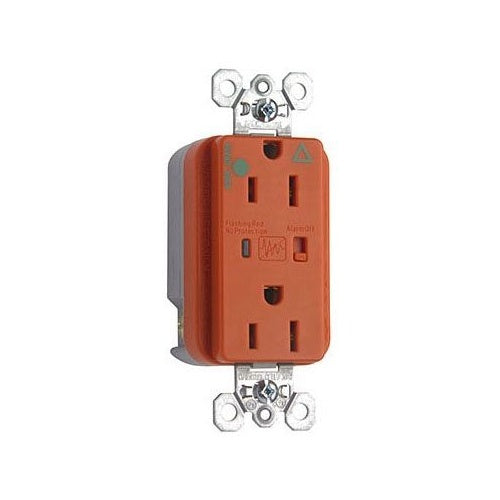

P&S IG8200-OSP Ig Tvss Hospital Grade Receptacle 15A 125V Alarm Orange

Overview

P&S IG8200-OSP Ig Tvss Hospital Grade Receptacle 15A 125V Alarm Orange

Product Specifications

• UPC: 78500719364
• Color: Orange
• Wiring: Back, Side
• Grade: Hospital
• Approval: UL 1449/498, CSA C22.2, FSUL WC596
• Additional Information: Applicable Standard ANSI/IEEE C62.41/C62.45, NEMA WD-1/WD-6; Material Nylon; Operating Temperature -4 to 131 Deg F; Includes Alarm, LED Indicator
• Catalog Number: IG8200-OSP
• Type: TVSS Duplex
• Configuration: 5-15R
• Voltage Rating: 125 VAC
• Current Rating: 15 Ampere
• Number Of Poles: 2
• Number Of Wires: 3
• Ground Type: Isolated Ground
• Catalog Description: HOSPITAL GRADE ISOLATED GROUND SURGE PROTECTIVE DUPLEX RECEPTACLE OFFERS INCREASED TRANSIENT PROTECTION, RELIABILITY AND PROTECTION NOTIFICATION (AUDIBLE ALARM WITH LED INDICATOR). BACK AND SIDE WIRE, 15AMP 125VOLT, BLUE.
• Category: Receptacles & Surge Protectors
• Full Technical Description: TVSS Duplex Type; Orange Color; 5-15R Configuration; 3 Wire(S); Hospital Grade; UL 1449/498, CSA C22.2, FSUL WC596 Approval; 125 VAC Voltage Rating; 15 Ampere Current Rating; Isolated Ground; 2 Pole(S); Back, Side Wiring; Applicable Standard Ansi/Ieee C62.41/C62.45, NEMA Wd-1/Wd-6; Material Nylon; Operating Temperature -4 to 131 Deg F; Includes Alarm, LED Indicator
• Manufacturer: Pass & Seymour Inc. Wiring Devices & Accessories
• Manufacturer Brand: Pass & Seymour Inc. Wiring Devices & Accessories
• Sub Category: Surge Suppression Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 785007193640
• SKU Name: p&s ig8200osp

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
