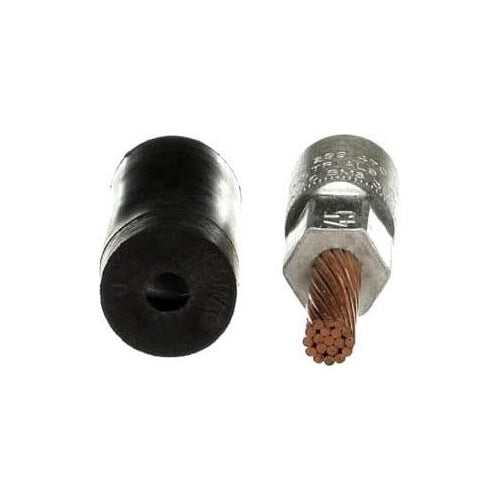

Blackburn PA41 4/0 Pin Adapter Terminal

Overview

Blackburn PA41 4/0 Pin Adapter Terminal

Product Specifications

• UPC: 78378613407
• Overall Length: 3-1/4 Inch
• Approval: UL
• Additional Information: Die Code 76; Die Color Red; Stud Size 2/0 AWG; Temperature Rating 90 Deg C
• Catalog Number: PA41
• Model: PA
• Type: Straight
• Conductor Material: Aluminum
• Conductor Size: 4/0 AWG Stranded
• Material: Tin Plated Aluminum Barrel, Tin Plated Copper Pigtail
• Pin Size: 1-3/8 Inch L
• Cover Size: 1-7/8 Inch
• Catalog Description: ALUMINUM PIN ADAPTER TERMINAL, WIRE SIZE 4/0 STR, TIN PLATED, DIE COLOR CODE RED
• Category: Large Terminals & Connectors
• Full Technical Description: Straight Type; Tin Plated Aluminum Barrel, Tin Plated Copper Pigtail Material; 3-1/4 Inch Overall Length; Aluminum Conductor Material; UL Approval; 4/0 AWG Stranded Conductor Size; 1-7/8 Inch Cover Size; 1-3/8 Inch L Pin Size; Die Code 76; Die Color Red; Stud Size 2/0 AWG; Temperature Rating 90 Deg C; PA Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Terminal Pin Adapter
• Unspsc: 39121405
• UPC 12 Digit: 783786134076
• SKU Name: pa41 blackburn

Resources

• Manufacturer Spec Sheet
• Material Safety Data Sheet (MSDS)
