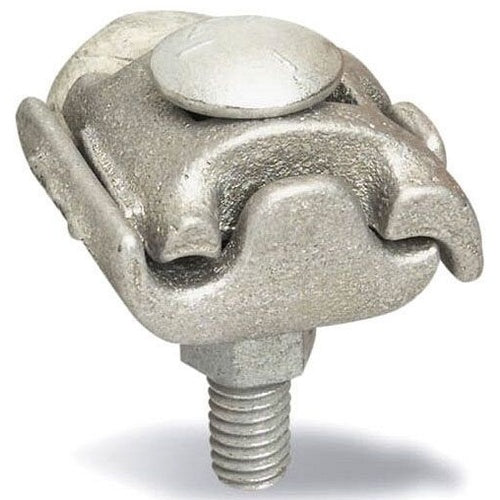

Blackburn PAA49 6Awg Parallel Grove Clamp

Product Specifications

• UPC: 78378633008
• Maximum Tap Conductor Size: 6 AWG SOLID (COPPER/ALUMINUM), 1/0 AWG (ACSR), 1/0 AWG STRANDED (COPPER/ALUMINUM)
• Material: HEAT TREATED HIGH STRENGTH CAST ALUMINUM ALLOY CLAMP, GALVANIZED STEEL BOLT/NUT/WASHER
• Catalog Number: PAA49
• Model: PAA
• Type: PARALLEL GROOVE CLAMP
• Installation: ONE/TWO BOLT, PARALLEL GROOVE
• Conductor Material: COPPER/ALUMINUM/ACSR
• Minimum Run Conductor Size: 6 AWG (ACSR), 6 AWG SOLID (COPPER/ALUMINUM), 1/0 AWG STRANDED (COPPER/ALUMINUM)
• Maximum Run Conductor Size: 6 AWG SOLID (COPPER/ALUMINUM), 1/0 AWG (ACSR), 1/0 AWG STRANDED (COPPER/ALUMINUM)
• Minimum Tap Conductor Size: 6 AWG SOLID (COPPER/ALUMINUM), 6 AWG (ACSR), 1/0 AWG STRANDED (COPPER/ALUMINUM)
• Catalog Description: ALUMINUM TYPE PAA - ONE BOLT ALUMINUM PARALLEL GROOVE CLAMP FOR WIRE RANGE MAIN: 1/0-6 ASCR 1/0 STR.-6 SOL. AL/CU, TAP: 1/0-6 ASCR 1/0 STR.-6 SOL. ALCU, PREFILLED WITH OXIDE INHIBITOR.
• Category: Large Terminals & Connectors
• Full Technical Description: Parallel Groove Clamp Type; Heat Treated High Strength Cast Aluminum Alloy Clamp, Galvanized Steel Bolt/Nut/Washer Material; 6 AWG (ACSR), 6 AWG Solid (Copper/Aluminum), 1/0 AWG Stranded (Copper/Aluminum) min. Run Conductor Size; 6 AWG Solid (Copper/Aluminum), 1/0 AWG (ACSR), 1/0 AWG Stranded (Copper/Aluminum) Max. Run Conductor Size; 6 AWG Solid (Copper/Aluminum), 6 AWG (ACSR), 1/0 AWG Stranded (Copper/Aluminum) min. Tap Conductor Size; 6 AWG Solid (Copper/Aluminum), 1/0 AWG (ACSR), 1/0 AWG Stranded (Copper/Aluminum) Max. Tap Conductor Size; One/Two Bolt, Parallel Groove Installation; Copper/Aluminum/Acsr Conductor Material; PAA Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121449
• UPC 12 Digit: 783786330089
• SKU Name: paa49 blackburn
