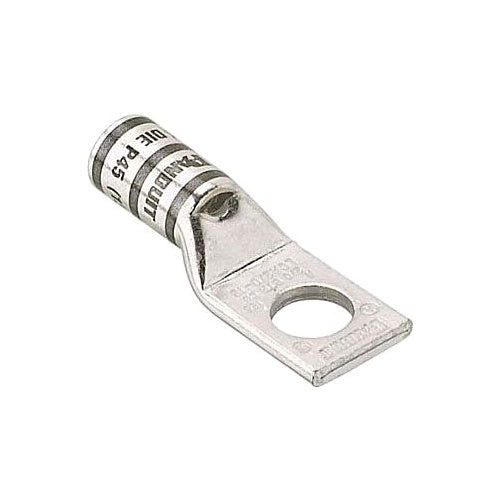

Panduit LCA6-10-L Copper Lug Sbw #6Awg #10 Stud Pkg 50

Product Specifications

• UPC: 07498390005
• Pad Size: 0.45 Inch Width x 0.09 Inch Thickness
• Number Of Pad Holes: 1
• Stud Size: #10
• Color: Blue
• Die Index: P24, 7 (Burndy), 24 (T and B)
• Material: Tin Plated Copper
• Overall Length: 1.52 Inch
• Approval: UL 486A/B, CSA C22.2
• Additional Information: RoHS Compliant; Wire Strip Length 7/8 Inch; Includes Inspection Window; Temperature Rating 90 Deg C
• Catalog Number: LCA6-10-L
• Brand Name: Panduit
• Model: LCA
• Voltage Rating: 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 6 AWG
• Barrel Type: Standard, Straight
• Barrel Length: 0.81 Inch
• Catalog Description: THE LCA6-10-L TIN-PLATED COPPER COMPRESSION LUG, ONE-HOLE, STANDARD BARREL, HAS COLOR-CODED BARRELS MARKED WITH PANDUIT AND SPECIFIED COMPETITOR DIE INDEX NUMBERS FOR PROPER CRIMP DIE SELECTION. AN INSPECTION WINDOW AIDS TO VISUALLY ASSURE FULL CONDUCTOR INSERTION, AND THE TIN-PLATE MATERIAL HELPS TO INHIBIT CORROSION. UL LISTED AND CSA CERTIFIED TO 35 KV AND TEMPERATURE RATED TO 90C.
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Copper Material; Blue Color; 1.52 Inch Overall Length; 0.81 Inch Barrel Length; Copper Conductor Material; UL 486A/B, CSA C22.2 Approval; 35 Kilovolt Voltage Rating; 6 AWG Conductor Size; #10 Stud Size; P24, 7 (Burndy), 24 (T and B) Die Index; 0.45 Inch Width X 0.09 Inch Thickness Pad Size; 1 Pad Hole(S); Standard, Straight Barrel Type; Pan-LUG[TM] Brand; RoHS Compliant; Wire Strip Length 7/8 Inch; Includes Inspection Window; Temperature Rating 90 Deg C; LCA Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 074983900053
• SKU Name: pand lca610l
