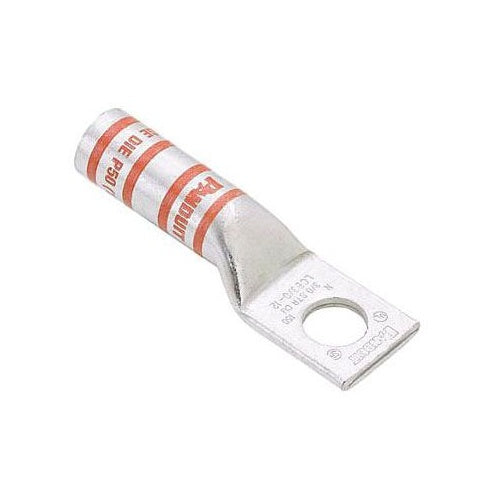

Panduit LCB1-56-E Copper Lug #1Awg Long 5/16 Stud Pkg 20

Overview

Panduit LCB1-56-E Copper Lug #1Awg Long 5/16 Stud Pkg 20

Product Specifications

• UPC: 07498390182
• Pad Size: 0.7 Inch Width x 0.11 Inch Thickness
• Number Of Pad Holes: 1
• Stud Size: 5/16 Inch
• Color: Green
• Die Index: P37, 11 (Burndy), 37 (T and B)
• Material: Tin Plated Copper
• Overall Length: 2.5 Inch
• Approval: UL 486A/B, CSA C22.2
• Additional Information: RoHS Compliant; Wire Strip Length 1-7/16 Inch; Temperature Rating 90 Deg C
• Catalog Number: LCB1-56-E
• Brand Name: Panduit
• Model: LCB
• Voltage Rating: 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 1 AWG
• Barrel Type: Long, Straight
• Barrel Length: 1.36 Inch
• Catalog Description: ONE-HOLE, LONG BARREL LUG, #1 AWG WIRE, 5/16 STUD HOLE.
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Copper Material; Green Color; 2.5 Inch Overall Length; 1.36 Inch Barrel Length; Copper Conductor Material; UL 486A/B, CSA C22.2 Approval; 35 Kilovolt Voltage Rating; 1 AWG Conductor Size; 5/16 Inch Stud Size; P37, 11 (Burndy), 37 (T and B) Die Index; 0.7 Inch Width X 0.11 Inch Thickness Pad Size; 1 Pad Hole(S); Long, Straight Barrel Type; Pan-LUG[TM] Brand; RoHS Compliant; Wire Strip Length 1-7/16 Inch; Temperature Rating 90 Deg C; LCB Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 074983901821
• SKU Name: pand lcb156e
