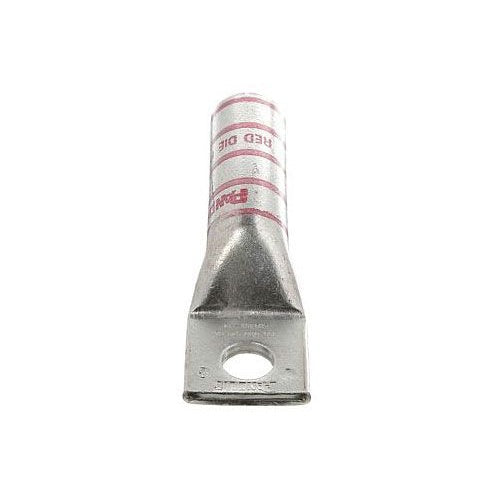

Panduit LCB350-12-X Copper Lug 350Kcmil Long 1/2 Stud Pkg 10

Product Specifications

• UPC: 07498390155
• Pad Size: 1.28 Inch W x 0.17 Inch Thk
• Number Of Pad Holes: 1
• Stud Size: 1/2 Inch
• Color: Red
• Die Index: P71, 18 (Burndy), 71 (T and B)
• Material: Electro Tin Plated Copper
• Overall Length: 4.11 Inch
• Approval: UL 486A/486B, CSA C22.2
• Additional Information: Temperature Rating 90 Deg C
• Catalog Number: LCB350-12-X
• Brand Name: Pan-Lug[TM]
• Model: LCB
• Voltage Rating: 35 KV
• Conductor Material: Copper
• Conductor Size: 350 KCMIL
• Barrel Type: Long, Straight
• Barrel Length: 2.24 Inch
• Catalog Description: ONE-HOLE, LONG BARREL LUG, 350 KCMIL CABLE, 1/2 STUD HOLE.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Red Color; 4.11 Inch Overall Length; 2.24 Inch Barrel Length; Copper Conductor Material; UL 486A/486B, CSA C22.2 Approval; 35 kV Voltage Rating; 350 kcmil Conductor Size; 1/2 Inch Stud Size; P71, 18 (Burndy), 71 (T and B) Die Index; 1.28 Inch W X 0.17 Inch Thk Pad Size; 1 Pad Hole(S); Long, Straight Barrel Type; Pan-LUG[TM] Brand; Temperature Rating 90 Deg C; LCB Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 074983901555
• SKU Name: pand lcb35012x
