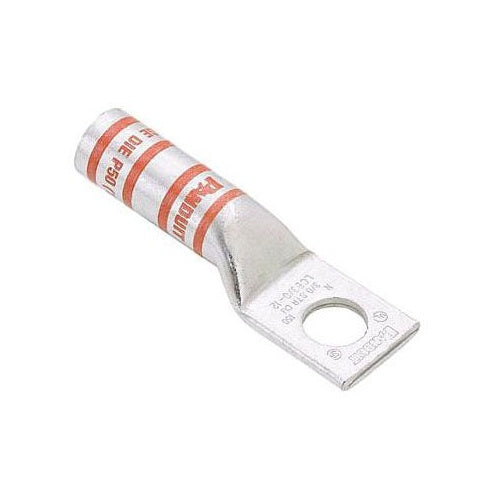

Panduit LCB8-14-L Copper Lug 8Awg .25" Stud Nowdw Pk50

Overview

Panduit LCB8-14-L Copper Lug 8Awg .25" Stud Nowdw Pk50

Product Specifications

• UPC: 07498390178
• Pad Size: 0.48 Inch Width x 0.07 Inch Thickness
• Number Of Pad Holes: 1
• Stud Size: 1/4 Inch
• Color: Red
• Die Index: P21, 49 (Burndy), 21 (T and B)
• Material: Tin Plated Copper
• Overall Length: 1.53 Inch
• Approval: UL 486A/B, CSA C22.2
• Additional Information: RoHS Compliant; Wire Strip Length 3/4 Inch; Temperature Rating 90 Deg C
• Catalog Number: LCB8-14-L
• Brand Name: Panduit
• Model: LCB
• Voltage Rating: 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 8 AWG
• Barrel Type: Long, Straight
• Barrel Length: 0.7 Inch
• Catalog Description: ONE-HOLE, LONG BARREL LUG, #8 AWG WIRE, 1/4 STUD HOLE.
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Copper Material; Red Color; 1.53 Inch Overall Length; 0.7 Inch Barrel Length; Copper Conductor Material; UL 486A/B, CSA C22.2 Approval; 35 Kilovolt Voltage Rating; 8 AWG Conductor Size; 1/4 Inch Stud Size; P21, 49 (Burndy), 21 (T and B) Die Index; 0.48 Inch Width X 0.07 Inch Thickness Pad Size; 1 Pad Hole(S); Long, Straight Barrel Type; Pan-LUG[TM] Brand; RoHS Compliant; Wire Strip Length 3/4 Inch; Temperature Rating 90 Deg C; LCB Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 074983901784
• SKU Name: pand lcb814l

Resources

• Manufacturer Spec Sheet
• Technical Drawing
