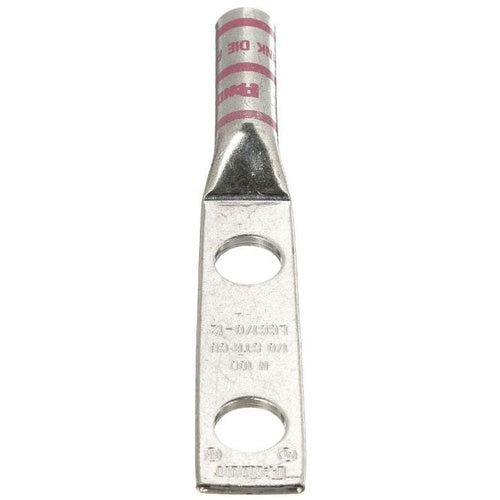

Panduit LCC1/0-12-X Copper Lug 1/0Awg 1.75"space Nowdw Pk10

Overview

Panduit LCC1/0-12-X Copper Lug 1/0Awg 1.75"space Nowdw Pk10

Product Specifications

• UPC: 07498390225
• Pad Size: 0.8 Inch W x 0.12 Inch Thk
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1.75 Inch
• Stud Size: 1/2 Inch
• Color: Pink
• Die Index: P42, 12 (Burndy), 42 (T and B)
• Material: Electro Tin Plated Copper
• Overall Length: 4.86 Inch
• Approval: UL 486A/486B, CSA C22.2
• Additional Information: Temperature Rating 90 Deg C; ROHS Compliant
• Catalog Number: LCC1/0-12-X
• Brand Name: Pan-Lug[TM]
• Model: LCC
• Voltage Rating: 35 KV
• Conductor Material: Copper
• Conductor Size: 1/0 AWG
• Barrel Type: Long, Straight
• Barrel Length: 1.44 Inch
• Catalog Description: TWO-HOLE, LONG BARREL LUG, 1/0 AWG WIRE, 1/2 STUD HOLE, 1.75 HOLE SPACING.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Pink Color; 4.86 Inch Overall Length; 1.44 Inch Barrel Length; Copper Conductor Material; UL 486A/486B, CSA C22.2 Approval; 35 kV Voltage Rating; 1/0 AWG Conductor Size; 1/2 Inch Stud Size; P42, 12 (Burndy), 42 (T and B) Die Index; 0.8 Inch W X 0.12 Inch Thk Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Long, Straight Barrel Type; Pan-LUG[TM] Brand; Temperature Rating 90 Deg C; RoHS Compliant; LCC Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 074983902255
• SKU Name: pand lcc1/012x
