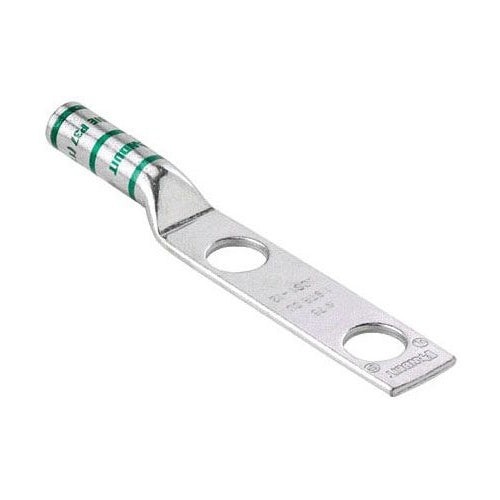

Panduit LCC1-12-E Copper Lug lb 2-Hole #1Awg 1/2 Stud 1.75 Pkg 20

Overview

Panduit LCC1-12-E Copper Lug lb 2-Hole #1Awg 1/2 Stud 1.75 Pkg 20

Product Specifications

• UPC: 07498390288
• Pad Size: 0.75 Inch W x 0.09 Inch Thk
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1.75 Inch
• Stud Size: 1/2 Inch
• Color: Green
• Die Index: P37, 11 (Burndy), 37 (T and B)
• Material: Electro Tin Plated Copper
• Overall Length: 4.74 Inch
• Approval: UL 486A/486B, CSA C22.2
• Additional Information: Temperature Rating 90 Deg C; ROHS Compliant
• Catalog Number: LCC1-12-E
• Brand Name: Pan-Lug[TM]
• Model: LCC
• Voltage Rating: 35 KV
• Conductor Material: Copper
• Conductor Size: 1 AWG
• Barrel Type: Long, Straight
• Barrel Length: 1.36 Inch
• Catalog Description: TWO-HOLE, LONG BARREL LUG, #1 AWG WIRE, 1/2 STUD HOLE, 1.75 HOLE SPACING.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Green Color; 4.74 Inch Overall Length; 1.36 Inch Barrel Length; Copper Conductor Material; UL 486A/486B, CSA C22.2 Approval; 35 kV Voltage Rating; 1 AWG Conductor Size; 1/2 Inch Stud Size; P37, 11 (Burndy), 37 (T and B) Die Index; 0.75 Inch W X 0.09 Inch Thk Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Long, Straight Barrel Type; Pan-LUG[TM] Brand; Temperature Rating 90 Deg C; RoHS Compliant; LCC Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 074983902880
• SKU Name: pand lcc112e

Resources

• Manufacturer Spec Sheet
• Technical Drawing
