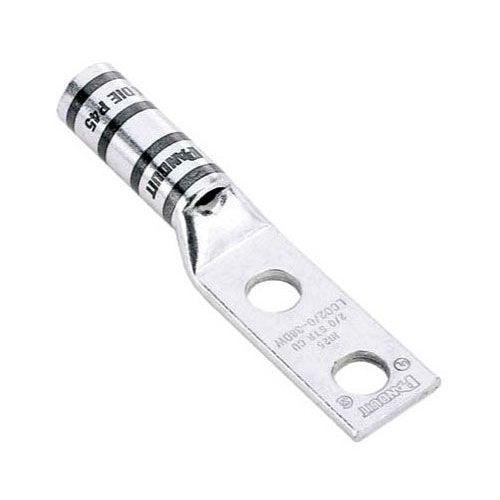

Panduit LCC2/0-38DW-X Copper Lug lbw 2-Hole 2/0Awg 3/8 1 Pkg 10

Overview

Panduit LCC2/0-38DW-X Copper Lug lbw 2-Hole 2/0Awg 3/8 1 Pkg 10

Product Specifications

• UPC: 07498379818
• Pad Hole Spacing: 1 Inch
• Stud Size: 3/8 Inch
• Color: Black
• Die Index: P45, 13 (Burndy), 45 (T and B)
• Material: Electro Tin Plated Copper
• Overall Length: 3.67 Inch
• Approval: UL 486A/486B, CSA C22.2
• Additional Information: RoHS Compliant; Wire Strip Length 1-9/16 Inch; Temperature Rating 90 Deg C
• Catalog Number: LCC2/0-38DW-X
• Voltage Rating: 35 KV
• Conductor Material: Copper
• Conductor Size: 2/0 AWG
• Barrel Type: Long, Straight
• Barrel Length: 1.5 Inch
• Pad Size: 0.85 Inch W x 0.13 Inch Thk
• Number Of Pad Holes: 2
• Catalog Description: TWO-HOLE, LONG BARREL LUG WITH WINDOW, 2/0 AWG WIRE, 3/8 STUD HOLE, 1 HOLE SPACING.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Black Color; 3.67 Inch Overall Length; 1.5 Inch Barrel Length; Copper Conductor Material; UL 486A/486B, CSA C22.2 Approval; 35 kV Voltage Rating; 2/0 AWG Conductor Size; 3/8 Inch Stud Size; P45, 13 (Burndy), 45 (T and B) Die Index; 0.85 Inch W X 0.13 Inch Thk Pad Size; 2 Pad Hole(S); 1 Inch Pad Hole Spacing; Long, Straight Barrel Type; Pan-LUG[TM] Brand; RoHS Compliant; Wire Strip Length 1-9/16 Inch; Temperature Rating 90 Deg C
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 074983798186
• SKU Name: pand lcc2/038dwx

Resources

• Manufacturer Spec Sheet
• Technical Drawing
