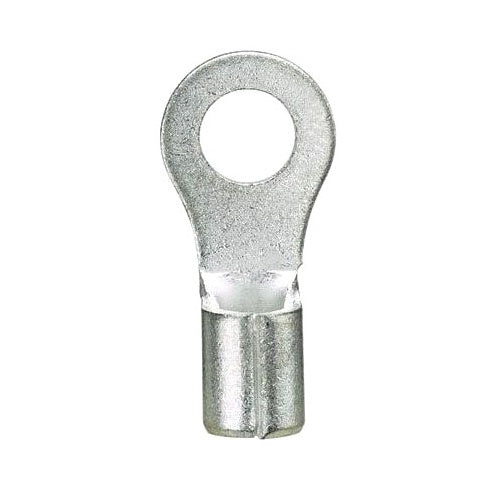

Panduit P14-10R-M Ring Non-Insulated 16-14Awg #10 Stud Pk1000

Overview

Panduit P14-10R-M Ring Non-Insulated 16-14Awg #10 Stud Pk1000

Product Specifications

• UPC: 07498380221
• Temperature Rating: 302 Deg F
• Standard Package: 1000
• Approval: UL 486A/B, CSA C22.2
• Additional Information: RoHS Compliant; Voltage Rating 2000 V; Overall Dimension 0.71 Inch L x 0.31 Inch W; Material Electrolytic Tin Plated Copper; Barrel Type Brazed Seam
• Catalog Number: P14-10R-M
• Brand Name: Pan-Term[R]
• Model: Type P-R
• Type: Beveled
• Minimum Conductor Size: 18 AWG
• Maximum Conductor Size: 14 AWG
• Insulation Type: Non-Insulated
• Stud Size: #10
• Catalog Description: THE P14-10R-M PAN-TERM TERMINAL IS A NON-INSULATED, RING TERMINAL. BRAZED SEAM PROTECTS TERMINAL BARREL FROM SPLITTING DURING THE CRIMP PROCESS. INTERNAL BARREL SERRATIONS ASSURE GOOD WIRE CONTACT AND MAXIMUM TENSILE STRENGTH.
• Category: Small Terminals & Connectors
• Full Technical Description: Beveled Type; 18 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL 486A/B, CSA C22.2 Approval; 302 Deg F Temperature Rating; 1000 Standard Package; #10 Stud Size; Non-Insulated Insulation Type; Pan-Term [R] Brand; RoHS Compliant; Voltage Rating 2000 V; Overall Dimension 0.71 Inch L X 0.31 Inch W; Material Electrolytic Tin Plated Copper; Barrel Type Brazed Seam; TYPE P-R Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Ring Lug
• Unspsc: 39121409
• UPC 12 Digit: 074983802210
• SKU Name: pand p1410rm

Resources

• Manufacturer Spec Sheet
• Technical Drawing
