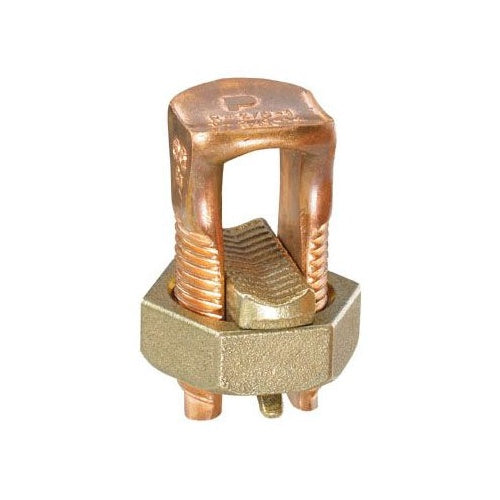

Panduit SBC500-1 Split Bolt Copper 300-500Kcmil Pkg 1

Overview

Panduit SBC500-1 Split Bolt Copper 300-500Kcmil Pkg 1

Product Specifications

• UPC: 07498390412
• Maximum Run Conductor Size: 500 KCMIL
• Minimum Tap Conductor Size: 300 KCMIL
• Maximum Tap Conductor Size: 500 KCMIL
• Material: Corrosion Resistant High Strength Copper Alloy
• Approval: UL, CSA
• Additional Information: Size 2.83 Inch L x 1.74 Inch W; Tightening Torque 825 Lb-Inch; Temperature Rating 90 Deg C; ROHS Compliant
• Catalog Number: SBC500-1
• Brand Name: Pan-Lug[TM]
• Model: SBC
• Type: Split Bolt
• Voltage Rating: 600 V
• Installation: Split Bolt
• Conductor Material: Copper
• Minimum Run Conductor Size: 300 KCMIL
• Catalog Description: SPLIT BOLT, COPPER, TYPE SBC, 300 - 500 KCMIL.
• Category: Large Terminals & Connectors
• Full Technical Description: Split Bolt Type; Corrosion Resistant High Strength Copper Alloy Material; 300 kcmil min. Run Conductor Size; 500 kcmil Max. Run Conductor Size; 300 kcmil min. Tap Conductor Size; 500 kcmil Max. Tap Conductor Size; Split Bolt Installation; Copper Conductor Material; UL, CSA Approval; 600 V Voltage Rating; Pan-LUG[TM] Brand; Size 2.83 Inch L X 1.74 Inch W; Tightening Torque 825 lb-Inch; Temperature Rating 90 Deg C; RoHS Compliant; SBC Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 074983904129
• SKU Name: pand sbc5001

Resources

• Manufacturer Spec Sheet
• Technical Drawing
