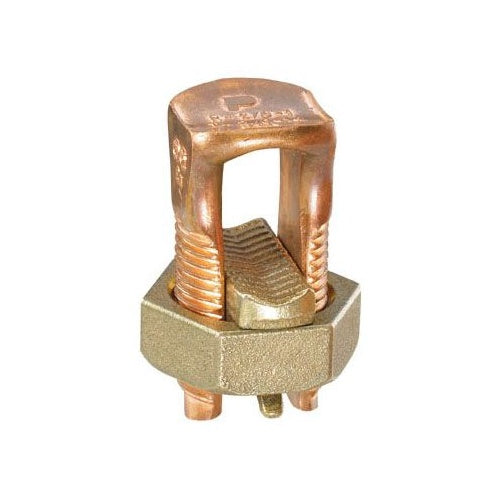

Panduit SBC6S-C Split Bolt Copper #8Str-#6Sol awg Pkg 100

Overview

Panduit SBC6S-C Split Bolt Copper #8Str-#6Sol awg Pkg 100

Product Specifications

• UPC: 07498390403
• Maximum Run Conductor Size: 6 AWG Stranded
• Minimum Tap Conductor Size: 8 AWG Stranded
• Maximum Tap Conductor Size: 6 AWG Stranded
• Material: Corrosion Resistant High Strength Copper Alloy
• Approval: UL, CSA
• Additional Information: Size 0.95 Inch L x 0.62 Inch W; Tightening Torque 165 Lb-Inch; Temperature Rating 90 Deg C; ROHS Compliant
• Catalog Number: SBC6S-C
• Brand Name: Pan-Lug[TM]
• Model: SBC
• Type: Split Bolt
• Voltage Rating: 600 V
• Installation: Split Bolt
• Conductor Material: Copper
• Minimum Run Conductor Size: 8 AWG Stranded
• Catalog Description: THE SBC6S-C MECHANICAL LUG SPLIT BOLT COPPER IS MADE FROM HIGH STRENGTH COPPER ALLOY TO PROVIDE PREMIUM ELECTRICAL AND MECHANICAL PERFORMANCE FOR WIDE WIRE RANGE-TAKING CAPABILITY THAT HELPS MINIMIZE INVENTORY REQUIREMENTS. THE INTERNAL PRESSURE BAR PROVIDES A SECURE CONNECTION ON A FULL RANGE OF CONDUCTOR COMBINATIONS USED WITH EACH LUG ASSURING PREMIUM WIRE PULL-OUT STRENGTH.
• Category: Large Terminals & Connectors
• Full Technical Description: Split Bolt Type; Corrosion Resistant High Strength Copper Alloy Material; 8 AWG Stranded min. Run Conductor Size; 6 AWG Stranded Max. Run Conductor Size; 8 AWG Stranded min. Tap Conductor Size; 6 AWG Stranded Max. Tap Conductor Size; Split Bolt Installation; Copper Conductor Material; UL, CSA Approval; 600 V Voltage Rating; Pan-LUG[TM] Brand; Size 0.95 Inch L X 0.62 Inch W; Tightening Torque 165 lb-Inch; Temperature Rating 90 Deg C; RoHS Compliant; SBC Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 074983904037
• SKU Name: pand sbc6sc
